010440WF009

Active

Essentra Access Solutions

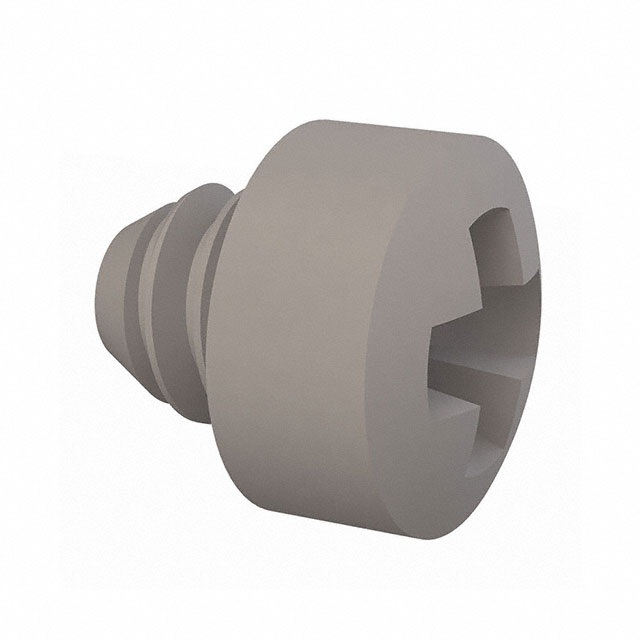

MACH SCREW PAN PHILLIPS #4-40

Search across all available documentation for this part.

Active

Essentra Access Solutions

MACH SCREW PAN PHILLIPS #4-40

Technical Specifications

Parameters and characteristics for this part

Part	Material	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]	Type	Screw Head Type	Head Height	Head Height	Thread Size	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head	Length - Below Head [x]
Essentra Access Solutions 010440WF009	Nylon	Phillips	4.43 mm	0.174 in	Machine Screw	Pan Head	0.195 in	4.95 mm	#4-40
Essentra Access Solutions 010440WF175	Nylon	Phillips			Machine Screw	Pan Head			#4-40	1.945 in	49.4 mm
Essentra Access Solutions 010440WF087	Nylon	Phillips			Machine Screw	Pan Head			#4-40	1.07 in	27.18 mm	0.875 in	22.23 mm	0.875 in
Essentra Access Solutions 010440WF037	Nylon	Phillips			Machine Screw	Pan Head			#4-40	0.57 in	14.48 mm	0.375 "	9.53 mm		0.375 "
Essentra Access Solutions 010440WF062	Nylon	Phillips			Machine Screw	Pan Head			#4-40	0.82 in	20.83 mm	15.88 mm	0.625 in		0.625 in
Essentra Access Solutions 010440WF125	Nylon	Phillips	4.43 mm	0.174 in	Machine Screw	Pan Head	0.195 in	4.95 mm	#4-40	1.445 in	36.7 mm			1.25 in		31.75 mm
Essentra Access Solutions 010440WF018	Nylon	Phillips			Machine Screw	Pan Head			#4-40
Essentra Access Solutions 010440WF012	Nylon	Phillips			Machine Screw	Pan Head			#4-40	0.32 in	8.13 mm
Essentra Access Solutions 010440WF056	Nylon	Phillips			Machine Screw	Pan Head			#4-40			14.29 mm			0.563 in
Essentra Access Solutions 010440WF162	Nylon	Phillips			Machine Screw	Pan Head			#4-40	1.82 in	46.23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

#4-40 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
