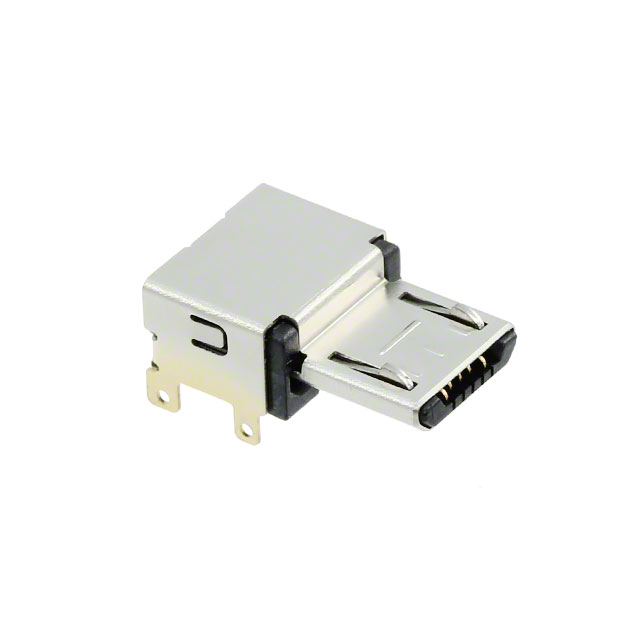

ZX60-B-5S(31)

Active

Hirose Electric Co Ltd

CONN PLUG USB2.0 MICRO B SMD R/A

Search across all available documentation for this part.

Active

Hirose Electric Co Ltd

CONN PLUG USB2.0 MICRO B SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	ZX60-B-5S(31)

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A
Gender	Plug
Insulation Color	Black
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

CONN PLUG USB2.0 MICRO B SMD R/A

Part	Insulation Color	Contact Finish	Connector Type	Mounting Type	Current Rating (Amps)	Termination	Number of Ports	Mounting Feature	Shell/Shielding Material	Operating Temperature [Min]	Operating Temperature [Max]	Specifications	Mating Cycles	Shielding	Gender	Number of Contacts	Voltage - Rated
Hirose Electric Co Ltd ZX60-B-5S(31)	Black	Gold	USB - micro B	Surface Mount, Right Angle, Through Hole	1.8 A	Solder	1	Horizontal	Stainless, Steel	-30 ░C	85 °C	USB 2.0	10000	Shielded	Plug	5	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Plug Connector 5 Position Surface Mount, Right Angle; Through Hole
