629-2W2-240-5TD

Active

EDAC Inc.

CONN D-SUB PLUG 2POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-2W2-240-5TD

Active

EDAC Inc.

CONN D-SUB PLUG 2POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-2W2-240-5TD

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

629-2W2 Series

...

Part	Number of Positions	Number of Rows	Contact Material	Mounting Type	Connector Type	Shell Size, Connector Layout	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shell Material, Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Style	Color	Contact Type	Voltage Rating	Backset Spacing	Backset Spacing	Contact Finish Thickness
EDAC Inc. 629-2W2-640-3N6	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	30 A	UL94 V-0	4-40	-55 °C	125 °C	Polyester Thermoplastic	Nickel Plated Steel	Solder	0.76 Ám	30 Áin	Board Lock Grounding Indents	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "
EDAC Inc. 629-2W2-650-3N3	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	30 A	UL94 V-0	Housing/Shell (4-40)	-55 °C	125 °C	Polyester Thermoplastic	Nickel Plated Steel	Solder	0.76 Ám	30 Áin	Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "
EDAC Inc. 629-2W2-640-2T2	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	20 A	UL94 V-0	Housing/Shell (4-40)	-55 °C	125 °C	Polyester Thermoplastic		Solder	0.76 Ám	30 Áin		Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "
EDAC Inc. 629-2W2-650-3TB	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	30 A	UL94 V-0	Housing/Shell (M3)	-55 °C	125 °C	Polyester Thermoplastic		Solder	0.76 Ám	30 Áin	Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "
EDAC Inc. 629-2W2-640-3T4	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	30 A	UL94 V-0	Housing/Shell (4-40)	-55 °C	125 °C	Polyester Thermoplastic		Solder	0.76 Ám	30 Áin	Grounding Indents Mounting Brackets	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "
EDAC Inc. 629-2W2-240-4ND	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	40 A	UL94 V-0	M3	-55 °C	125 °C	Polyester Thermoplastic	Nickel Plated Steel	Solder			Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "	Flash
EDAC Inc. 629-2W2-240-5TD	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold		UL94 V-0	M3	-55 °C	125 °C	Polyester Thermoplastic		Solder			Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	Black	Coax	125 VDC	9.4 mm	0.37 in	Flash
EDAC Inc. 629-2W2-250-1NC	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	10 A	UL94 V-0	Housing/Shell (M3)	-55 °C	125 °C	Polyester Thermoplastic	Nickel Plated Steel	Solder			Grounding Indents Mounting Brackets	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "	Flash
EDAC Inc. 629-2W2-250-2TA	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold	20 A	UL94 V-0	Board Side (M3)	-55 °C	125 °C	Polyester Thermoplastic		Solder			Grounding Indents	Combo D-Sub	Black	Power	125 VDC	13.2 mm	0.52 "	Flash
EDAC Inc. 629-2W2-640-7N6	2	1	Copper Alloy	Through Hole Right Angle	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	Gold		UL94 V-0	4-40	-55 °C	125 °C	Polyester Thermoplastic	Nickel Plated Steel	Solder	0.76 Ám	30 Áin	Board Lock Grounding Indents	Combo D-Sub	Black	Coax	125 VDC	9.4 mm	0.37 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 5.79

Description

General part information

629-2W2 Series

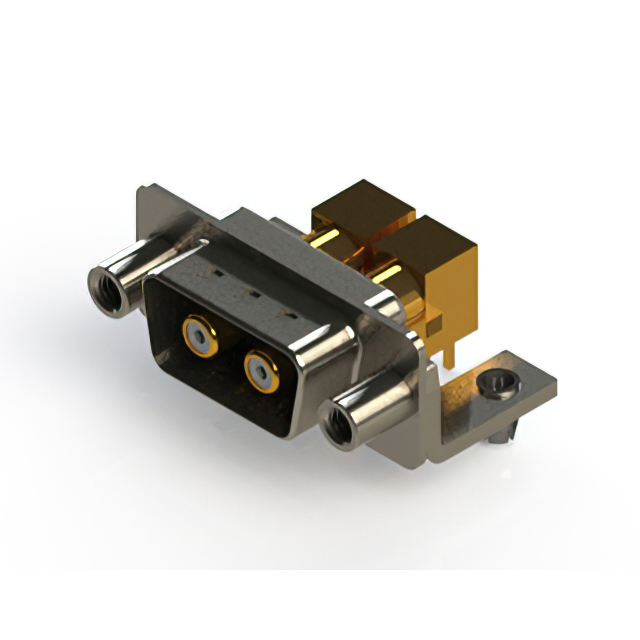

2 (Coax) Position D-Sub, Combo Plug, Male Pins Connector
