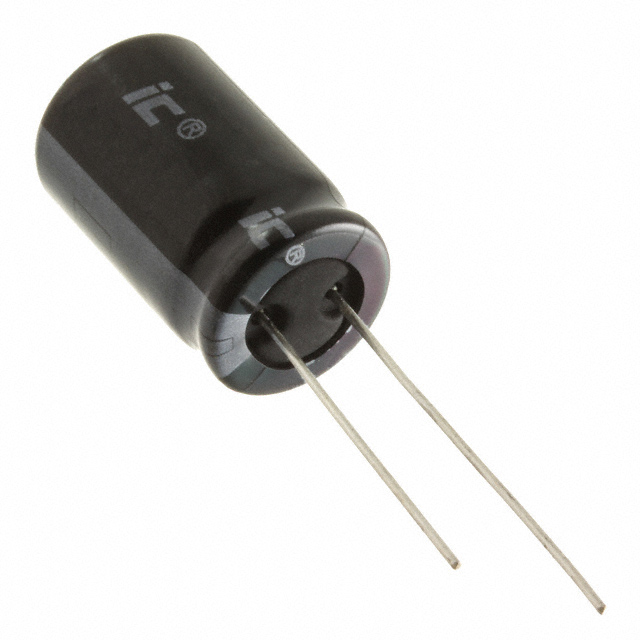

Specification	158CKH050M

Applications	General Purpose
Capacitance	1500 µF
ESR (Equivalent Series Resistance)	132.6 mOhm
Height - Seated (Max)	1.24 in
Lead Spacing	0.295 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	1.25 A, 1.75 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	50 V
