796861-3

Active

TE Connectivity AMP Connectors

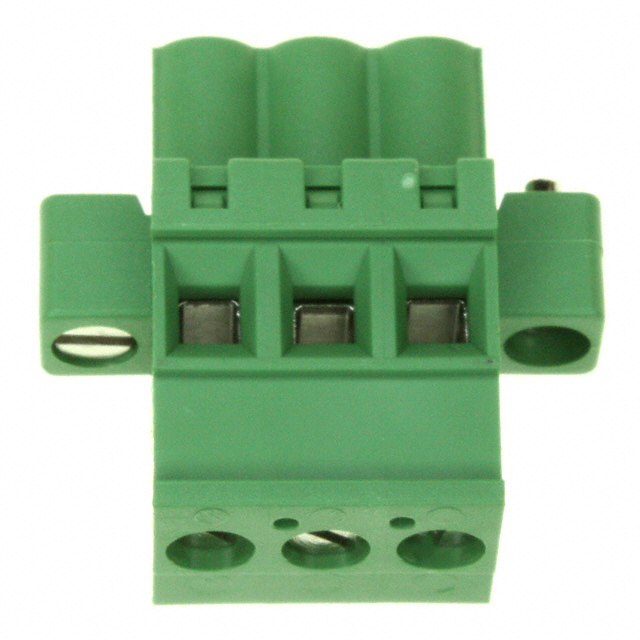

TERM BLOCK PLUG 3POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 3POS 5.08MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796861-3	796861 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Insulation Height	25 mm	25 mm
Insulation Height	0.984 in	0.984 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	2 - 11
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Plug Wire Entry	270 °	270 °
Positions Per Level	3	2 - 11
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

TERM BLOCK PLUG 2POS 5.08MM

Part	Positions Per Level	Contact Material	Type	Voltage - UL	Contact Mating Finish	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Number of Positions	Features	Torque - Screw	Torque - Screw	Plug Wire Entry	Color	Termination Style	Mounting Type	Screw Size	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating
TE Connectivity AMP Connectors 796861-2	2	Phosphor Bronze	Plug, Female Sockets	300 V	Tin	25 mm	0.984 in	30 AWG	12 AWG	0.2 in	5.08 mm	-40 °C	110 °C	1	2	Mating Flange, Retention Latches (Non-Wire Side)	0.79 Nm	7 Lb-In	270 °	Green	Screw - Rising Cage Clamp	Free Hanging (In-Line)	M3	7.5 mm	6 mm	UL94 V-0
TE Connectivity AMP Connectors 796861-3	3	Phosphor Bronze	Plug, Female Sockets	300 V	Tin	25 mm	0.984 in	30 AWG	12 AWG	0.2 in	5.08 mm	-40 °C	110 °C	1		Mating Flange, Retention Latches (Non-Wire Side)	0.79 Nm	7 Lb-In	270 °	Green	Screw - Rising Cage Clamp	Free Hanging (In-Line)	M3	7.5 mm	6 mm	UL94 V-0
TE Connectivity AMP Connectors 1-796861-1	11	Phosphor Bronze	Plug, Female Sockets	300 V	Tin	25 mm	0.984 in	30 AWG	12 AWG	0.2 in	5.08 mm	-40 °C	110 °C	1	11	Mating Flange, Retention Latches (Non-Wire Side)	0.79 Nm	7 Lb-In	270 °	Green	Screw - Rising Cage Clamp	Free Hanging (In-Line)	M3	7.5 mm	6 mm	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 270° Free Hanging (In-Line)
