PEW34CP001-40
ActivePasternack

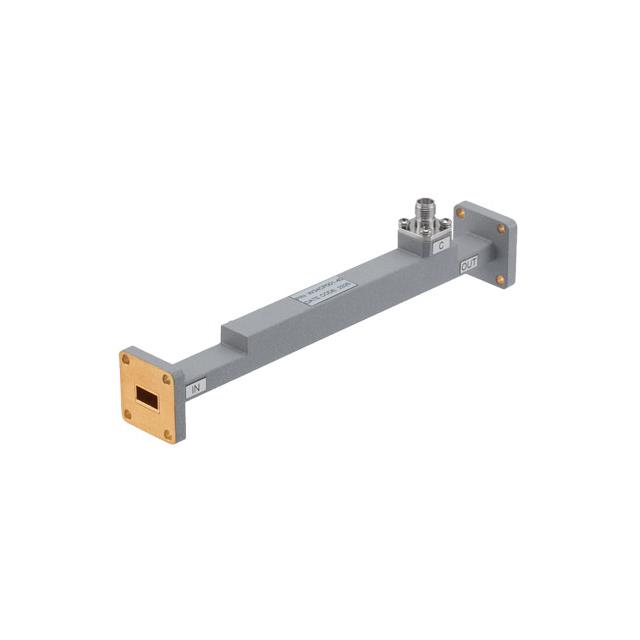

WR-34 WAVEGUIDE 40 DB BROADWALL
PEW34CP001-40
ActivePasternack
WR-34 WAVEGUIDE 40 DB BROADWALL
Description
General part information
PEW34CP001-40
RF Directional Coupler General Purpose 21.7GHz ~ 33GHz 40dB 150W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PEW34CP001-40 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 40 dB |
| Frequency (Max) | 33 GHz |
| Frequency (Min) | 21.7 GHz |
| Insertion Loss | 0.25 dB |
| Isolation | 25 dB |
| Package / Case | Module |
| Power - Max | 150 W |
