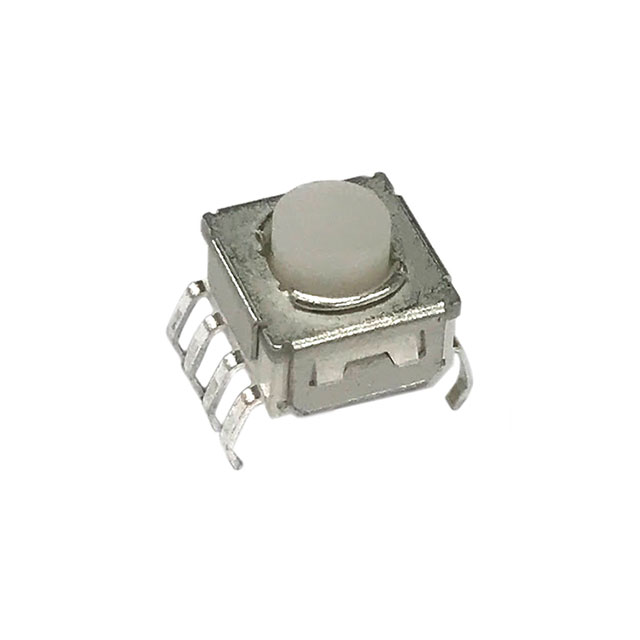

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	228EDVARF	228EDVA Series

Actuator Height off PCB, Vertical	5.4 mm	5.4 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	Amber/Red, LED, Green/Red, Red
Illumination Voltage (Nominal)	-	1.7 - 1.9 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	200 gf	200 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	6.8 mm	6.8 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.7 mm	0.7 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Illumination Type, Color	Operating Force	Actuator Height off PCB, Vertical	Termination Style	Switch Function	Mechanical Life	Actuator Orientation	Contact Rating @ Voltage	Circuit	Outline [y]	Outline [x]	Actuator Type	Mounting Type	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Ingress Protection
CTS Electrocomponents 228EDVARAF	Illuminated	Amber/Red, LED	200 gf	5.4 mm	PC Pin	Off-Mom	100000 Cycles	Top Actuated	0.05 A, 12 VDC	SPST-NO	6.8 mm	7.2 mm	Standard	Through Hole	0.7 mm	85 °C	-40 °C
CTS Electrocomponents 228EDVARGF	Illuminated	Green/Red, LED	200 gf	5.4 mm	PC Pin	Off-Mom	100000 Cycles	Top Actuated	0.05 A, 12 VDC	SPST-NO	6.8 mm	7.2 mm	Standard	Through Hole	0.7 mm	85 °C	-40 °C	1.7 VDC, 1.9 VDC
CTS Electrocomponents 228EDVARF	Illuminated	LED, Red	200 gf	5.4 mm	PC Pin	Off-Mom	100000 Cycles	Top Actuated	0.05 A, 12 VDC	SPST-NO	6.8 mm	7.2 mm	Standard	Through Hole	0.7 mm	85 °C	-40 °C		IP67 - Dust Tight, Waterproof
