BOARD EVAL FOR MCP6H04 OP AMP
ADM00375
ObsoleteMicrochip Technology
BOARD EVAL FOR MCP6H04 OP AMP
Description
General part information
ADM00375

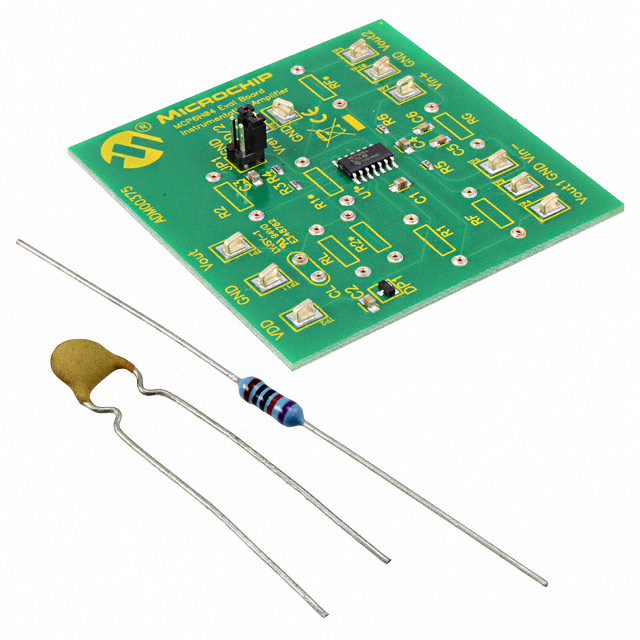

MCP6H04 4 - Quad Channels per IC General Purpose Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | ADM00375 |
|---|---|
| Amplifier Type | General Purpose, Standard (General Purpose) |
| Board Type | Fully Populated |
| Channels per IC (Count) | 4 |
| Channels per IC (Quad) | 4 |
| Channels per IC (Type) | Quad |
| Contents | Board |
| Current - Output / Channel | 50 mA |
| Current - Supply (Main IC) | 0.000135 µA |
| Gain Bandwidth Product | 1.2 MHz |
| Output Type | Rail-to-Rail, Single-Ended |
| Slew Rate | 0.8 V/µs |
| Supplied Contents | Board(s) |
| Supply Configuration | Dual, Single |
| Utilized IC / Part | MCP6H04 |
| Voltage - Supply (Dual) Maximum (Magnitude) | 8 V |
| Voltage - Supply (Dual) Minimum (Magnitude) | 1.75 V |
| Voltage - Supply (Single) Maximum | 16 V |
| Voltage - Supply (Single) Minimum | 3.5 V |
