P10522 BK005

Active

ALPHA WIRE

FIT WIRE MANAGEMENT /100 FT /EACH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

FIT WIRE MANAGEMENT /100 FT /EACH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P10522 BK005	P10522 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Black	Black, Clear
Diameter - Inside [diameter]	0.64 mm	0.64 mm
Diameter - Inside [diameter]	0.025 in	0.025 in
Diameter - Outside [diameter]	0.056 in	0.056 in
Diameter - Outside [diameter]	1.42 mm	1.42 mm
Environment Protection	UV Resistant, Corrosion Resistant	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant	Heat Resistant
Length	100 ft	100 - 1000 ft
Length	30.48 m	30.48 - 304.8 m
Liquid Protection	Oil Resistant	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1	UL 224 VW-1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Type	Solid Tubing	Solid Tubing
Type Attributes	Smooth	Smooth
Wall Thickness	0.012 in	0.012 in
Wall Thickness	0.3 mm	0.3 mm

FIT WIRE MANAGEMENT /100 FT /EACH ROHS COMPLIANT: YES

Part	Type	Environment Protection	Operating Temperature [Min]	Operating Temperature [Max]	Heat Protection	Abrasion Protection	Material Flammability Rating	Liquid Protection	Color	Wall Thickness	Wall Thickness	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Type Attributes
ALPHA WIRE P10522 BK005	Solid Tubing	Corrosion Resistant, UV Resistant	-20 C	105 ░C	Heat Resistant	Abrasion Resistant	UL 224 VW-1	Oil Resistant	Black	0.012 in	0.3 mm	0.056 in	1.42 mm	100 ft	30.48 m	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Smooth
ALPHA WIRE P10522 BK001	Solid Tubing	Corrosion Resistant, UV Resistant	-20 C	105 ░C	Heat Resistant	Abrasion Resistant	UL 224 VW-1	Oil Resistant	Black	0.012 in	0.3 mm	0.056 in	1.42 mm	1000 ft	304.8 m	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Smooth
ALPHA WIRE P10522 CL005	Solid Tubing	Corrosion Resistant, UV Resistant	-20 C	105 ░C	Heat Resistant	Abrasion Resistant	UL 224 VW-1	Oil Resistant	Clear	0.012 in	0.3 mm	0.056 in	1.42 mm	100 ft	30.48 m	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Smooth

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

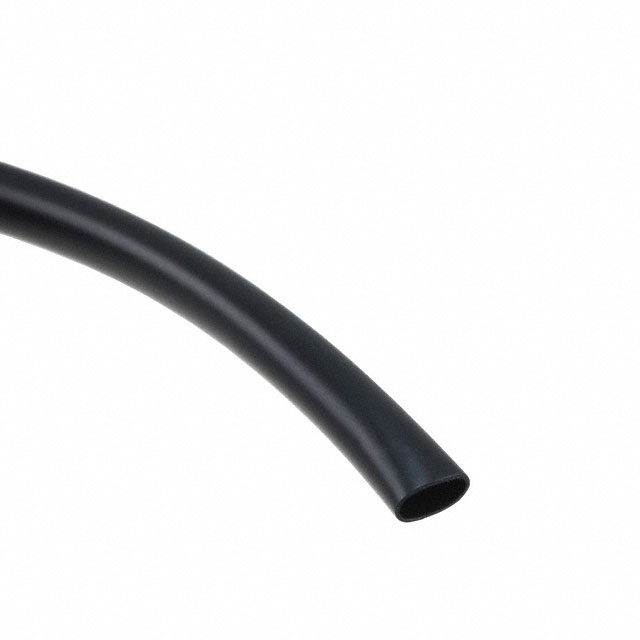

Black Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.025" (0.64mm) 100' (30.48m)
