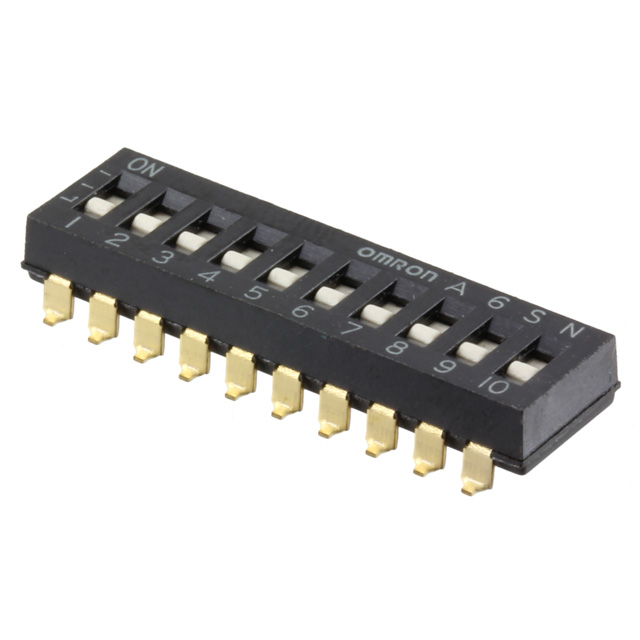

A6S-0102-H(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6S-0102-H(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6S-0102-H(VNM) |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 1000 Cycles |
| Features | Tape Seal |
| Height Above Board | 3.7 mm |
| Height Above Board | 0.146 in |
| Length [x] | 1.037 in |
| Length [x] | 26.34 mm |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.00 | |
| 18 | $ 4.79 | |||
| 108 | $ 3.79 | |||
| 1008 | $ 2.96 | |||
Description
General part information
A6S-0102 Series
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
