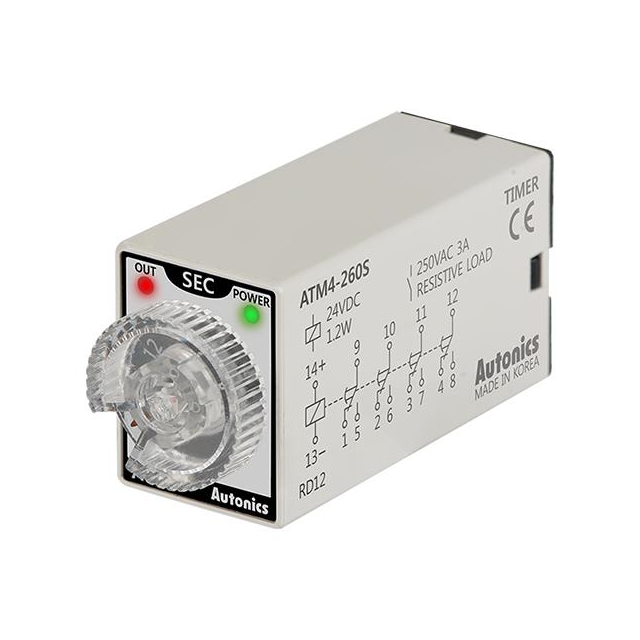

ATM4-260S
ActiveAUTONICS
RELAY TIME DELAY 60SEC 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATM4-260S
ActiveAUTONICS
RELAY TIME DELAY 60SEC 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM4-260S |
|---|---|
| Circuit | 4 Form C |
| Circuit | 4PDT |
| Contact Rating @ Voltage | 24 VDC, 3 A, 250 VAC |
| Delay Time [Max] | 60 Sec |
| Delay Time [Min] | 6 Sec |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 14 Pin |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.00 | |
Description
General part information
ATM4-260S
On-Delay Time Delay Relay 4PDT (4 Form C) 6 Sec ~ 60 Sec Delay 3A @ 250VAC/24VDC Socketable
