387-006-558-104
ActiveEDAC Inc.

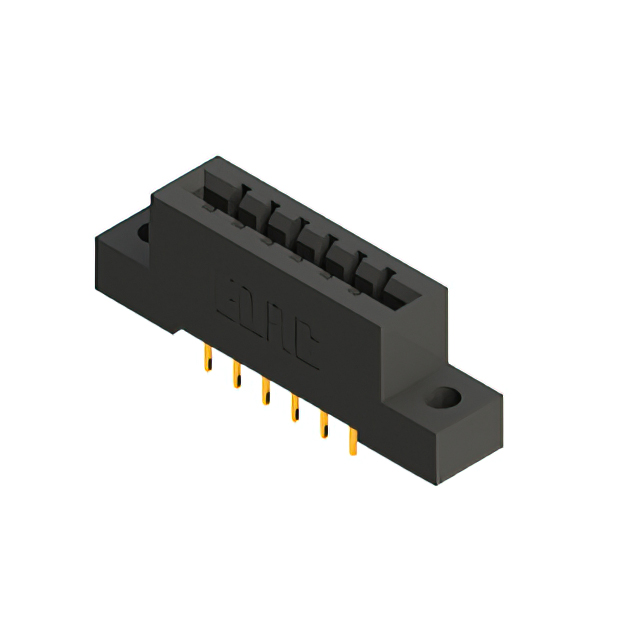

CONN EDGE SGL FMALE 6POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-006-558-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 6POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-006-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
387-006 Series
...
| Part | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Color | Termination Rows | Contact Finish | Material - Insulation | Number of Rows | Card Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Gender | Flange Feature | Number of Positions/Bay/Row [custom] | Termination | Mounting Type | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 4-40 Threaded Insert Top Mount Opening | 6 | Wire Wrap | Through Hole | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 4-40 Flush Mount Threaded Insert Top Opening | 6 | Solder | Through Hole | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | M3 Threaded Insert Top Mount Opening | 6 | Wire Wrap | Through Hole | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Flush Mount Side Opening Unthreaded | 6 | Wire Wrap | Through Hole Right Angle | Cantilever | 3.25 mm | 0.128 " | ||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 6 | Wire Wrap | Through Hole Right Angle | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 4-40 Threaded Insert Top Mount Opening | 6 | Wire Wrap | Through Hole | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 4-40 Flush Mount Threaded Insert Top Opening | 6 | Wire Wrap | Through Hole Right Angle | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Floating Bobbin Flush Mount | 6 | Wire Wrap | Through Hole Right Angle | Cantilever | 2.95 mm | 0.116 in | ||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Flush Mount Top Opening Unthreaded | 6 | Wire Wrap | Through Hole Right Angle | Cantilever | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Black | 1 | Gold | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 6 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Top Mount Opening Unthreaded | 6 | Solder | Through Hole | Cantilever | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 5.64 | |
Description
General part information
387-006 Series
6 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
