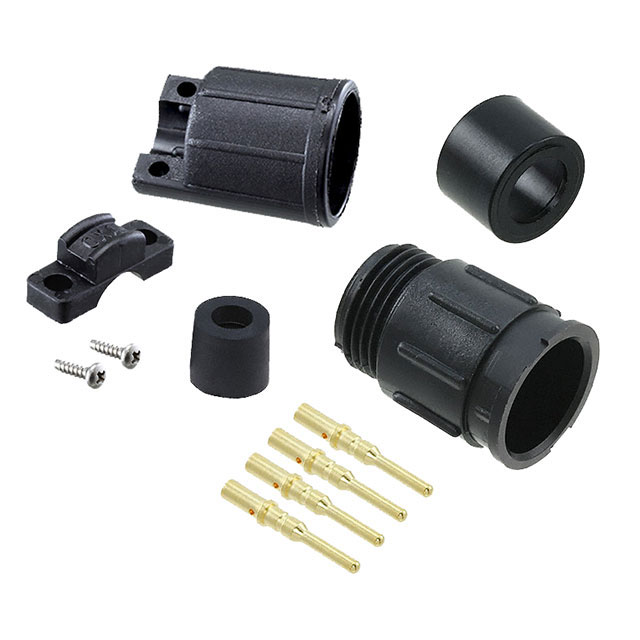

5280-4SG-515
ActiveConxall/Switchcraft
CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5280-4SG-515
ActiveConxall/Switchcraft
CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5280-4SG-515 | 5280-4SG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening | - | 5.33 - 7.11 mm |
| Cable Opening | - | 0.23 - 0.29 in |
| Cable Opening | - | 0.21 - 0.28 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
5280-4SG Series
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Current Rating (Amps) | Termination | Connector Type | Fastening Type | Color | Orientation | Backshell Material, Plating | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Features | Ingress Protection | Cable Opening [custom] | Cable Opening [custom] | Primary Material | Contact Finish - Mating | Shielding | Contact Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5280-4SG-515 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell, Cable Clamp | Weathertight | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Plastic | Gold | Unshielded | Brass | ||||||||
Conxall/Switchcraft 5280-4SG-3DC | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell | Weathertight | Plastic | Gold | Unshielded | Brass | ||||||||||
Conxall/Switchcraft 5280-4SG-528 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell, Cable Clamp | Weathertight | Plastic | Gold | Unshielded | Brass | 7.37 mm | 7.11 mm | 0.29 in | 0.28 in | ||||||
Conxall/Switchcraft 5280-4SG-328 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell | Weathertight | Plastic | Gold | Unshielded | Brass | 7.37 mm | 7.11 mm | 0.29 in | 0.28 in | ||||||
Conxall/Switchcraft 5280-4SG-518 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell, Cable Clamp | Weathertight | Plastic | Gold | Unshielded | Brass | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | ||||||
Conxall/Switchcraft 5280-4SG-321 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell | Weathertight | Plastic | Gold | Unshielded | Brass | 5.84 mm | 5.33 mm | 0.23 in | 0.21 in | ||||||
Conxall/Switchcraft 5280-4SG-315 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell | Weathertight | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Plastic | Gold | Unshielded | Brass | ||||||||
Conxall/Switchcraft 5280-4SG-318 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell | Weathertight | Plastic | Gold | Unshielded | Brass | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | ||||||
Conxall/Switchcraft 5280-4SG-324 | 5.6 A | Crimp | Receptacle, Female Sockets | Bayonet Lock | Black | Keyed | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 4 | -40 °C | 115 °C | 600 V | Backshell | Weathertight | Plastic | Gold | Unshielded | Brass | 6.86 mm | 6.1 mm | 0.27 in | 0.24 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.84 | |
Description
General part information
5280-4SG Series
4 Position Circular Connector Receptacle, Female Sockets Crimp
