MS110-10F
ActiveMasach Tech Ltd.
RF SHIELD 0.433"X0.433" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS110-10F
ActiveMasach Tech Ltd.
RF SHIELD 0.433"X0.433" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS110-10F | MS110 Series |
|---|---|---|
| Height - Overall [z] | 2.8 mm | 2.8 - 6 mm |
| Height - Overall [z] | 0.11 in | 0.11 - 0.236 in |
| Length - Overall [x] | 11 mm | 11 - 11.6 mm |
| Length - Overall [x] | 0.433 in | 0.433 - 0.457 in |
| Mounting Type | Solder | Snap Fit, Solder |
| Type | Frame | Cover, Shield, 1-Piece, Frame |
| Ventilation | - | Non-Vented |
| Width - Overall | - | 0.457 " |
| Width - Overall | - | 11.6 mm |
| Width - Overall [x] | 11 mm | 11 mm |
| Width - Overall [x] | 0.433 in | 0.433 in |
MS110 Series
RF SHIELD 0.457X0.457" SNAP FIT
| Part | Mounting Type | Height - Overall [z] | Height - Overall [z] | Ventilation | Width - Overall [y] | Width - Overall [y] | Length - Overall [x] | Length - Overall [x] | Type | Width - Overall [x] | Width - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Masach Tech Ltd. MS110-20C-NS | Snap Fit | 2.8 mm | 0.11 in | Non-Vented | 0.457 " | 11.6 mm | 0.457 in | 11.6 mm | Cover | ||
Masach Tech Ltd. MS110-20S-NS | Solder | 6 mm | 0.236 in | Non-Vented | 0.433 in | 11 mm | Shield, 1-Piece | 11 mm | 0.433 in | ||
Masach Tech Ltd. MS110-10F-NS | Solder | 2.8 mm | 0.11 in | 0.433 in | 11 mm | Frame | 11 mm | 0.433 in | |||
Masach Tech Ltd. MS110-20F-NS | Solder | 6 mm | 0.236 in | Non-Vented | 0.433 in | 11 mm | Frame | 11 mm | 0.433 in | ||
Masach Tech Ltd. MS110-20F | Solder | 6 mm | 0.236 in | 0.433 in | 11 mm | Frame | 11 mm | 0.433 in | |||
Masach Tech Ltd. MS110-20C | Snap Fit | 2.8 mm | 0.11 in | Non-Vented | 0.457 " | 11.6 mm | 0.457 in | 11.6 mm | Cover | ||
Masach Tech Ltd. MS110-10S-NS | Solder | 2.8 mm | 0.11 in | Non-Vented | 0.433 in | 11 mm | Shield, 1-Piece | 11 mm | 0.433 in | ||
Masach Tech Ltd. MS110-10C-NS | Snap Fit | 2.8 mm | 0.11 in | Non-Vented | 0.457 " | 11.6 mm | 0.457 in | 11.6 mm | Cover | ||
Masach Tech Ltd. MS110-10C | Snap Fit | 2.8 mm | 0.11 in | Non-Vented | 0.457 " | 11.6 mm | 0.457 in | 11.6 mm | Cover | ||
Masach Tech Ltd. MS110-10F | Solder | 2.8 mm | 0.11 in | 0.433 in | 11 mm | Frame | 11 mm | 0.433 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.37 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.16 | |||
| 130 | $ 0.95 | |||
| 260 | $ 0.89 | |||
| 520 | $ 0.79 | |||
| 1040 | $ 0.62 | |||
| 2470 | $ 0.58 | |||
| 4940 | $ 0.55 | |||
Description
General part information
MS110 Series

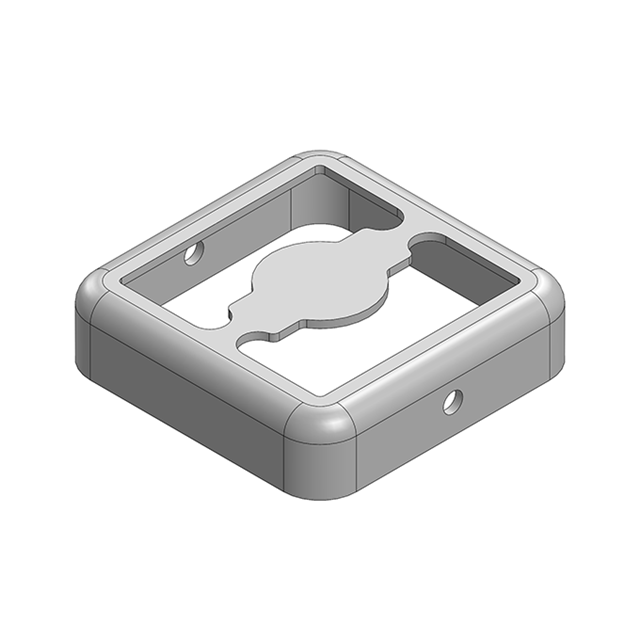

RF Shield Frame 0.433" (11.00mm) X 0.433" (11.00mm) Solder
