Description
General part information

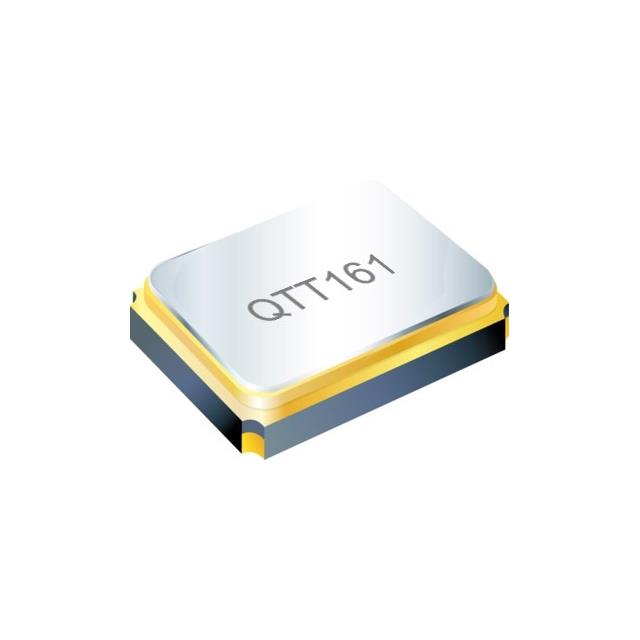

QTT161-38.400MDG-T
38.4 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | QTT161-38.400MDG-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2 mA |
| Frequency | 38.4 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.047 in |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
