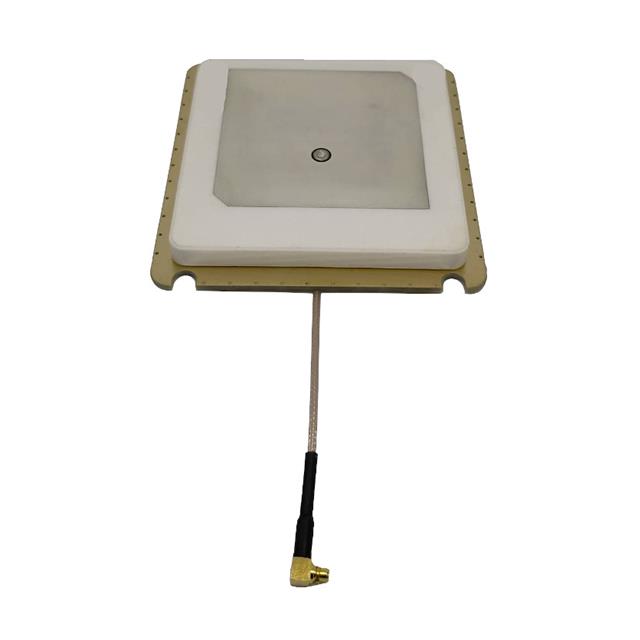

ANT1009
ActiveRFMi
RF ANT 2451MHZ CERAMIC PATCH IP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT1009
ActiveRFMi
RF ANT 2451MHZ CERAMIC PATCH IP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1009 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | Wi-Fi |
| Features | Cable - 150mm |
| Frequency (Center/Band) | 2.451 GHz |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 0.5 dBi |
| Height (Max) [Max] [z] | 0.217 in |
| Height (Max) [Max] [z] | 5.5 mm |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | WiFi |
| Termination | IPEX |
| VSWR | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.99 | |
| 2 | $ 44.98 | |||
| 5 | $ 42.98 | |||
| 10 | $ 39.98 | |||
| Tray | 10 | $ 16.62 | ||
Description
General part information
ANT1009
RF ANTENNA Wi-Fi Ceramic Patch IPEX Adhesive
Documents
Technical documentation and resources
