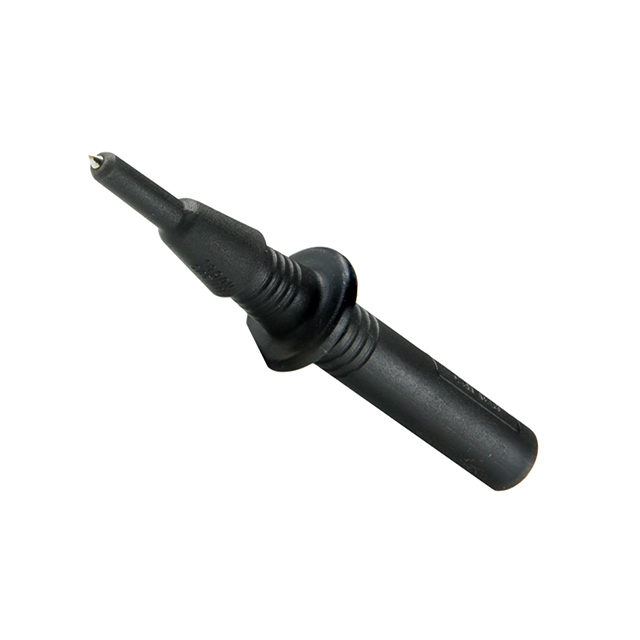

CT3974-0
ObsoleteCal Test Electronics
PROBE BODY FIXED TIP, 3900 SERIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT3974-0
ObsoleteCal Test Electronics
PROBE BODY FIXED TIP, 3900 SERIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT3974-0 |
|---|---|
| Color | Black |
| Connection Type | Female Socket (Jack), Banana |
| Current Rating (Amps) | 10 A |
| Includes | IC Insulator Cap |
| Length - Overall [x] | 75.18 mm |
| Length - Overall [x] | 2.96 in |
| Length - Tip | 0.748 in |
| Length - Tip | 19 mm |
| Material - Tip | Brass, Nickel Plated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Quantity | 1 Box |
| Ratings | CAT III 1000V, CAT IV 600V |
| Tip Type | 2.03 mm |
| Tip Type | 0.08 in |
| Tip Type | Standard Tip |
| Voltage Rating | 600 V, 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.05 | |
Description
General part information
CT3974-0
10 A Standard Tip, 0.080" (2.03mm) Dia Black
