EEC.0B.304.CLL

Active

LEMO

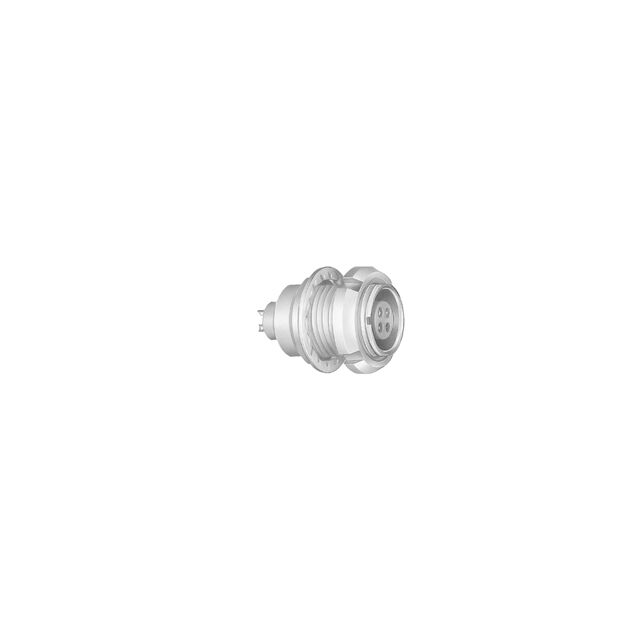

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EEC.0B.304.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	C
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Current Rating (Amps)	Mounting Feature	Color	Ingress Protection	Insert Material	Contact Finish - Mating	Shielding	Fastening Type	Orientation	Material Flammability Rating	Number of Positions	Primary Material	Shell Finish	Shell Material
LEMO EEC.0B.304.CLL	304	59 Áin	1.5 Ám	-55 °C	250 °C	Bronze	Receptacle, Female Sockets	7 A	Bulkhead - Front Side Nut	Silver	IP50	Polyetheretherketone (PEEK)	Gold	Shielded	Push-Pull	C	UL94 V-0	4	Metal	Chrome	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.34

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
