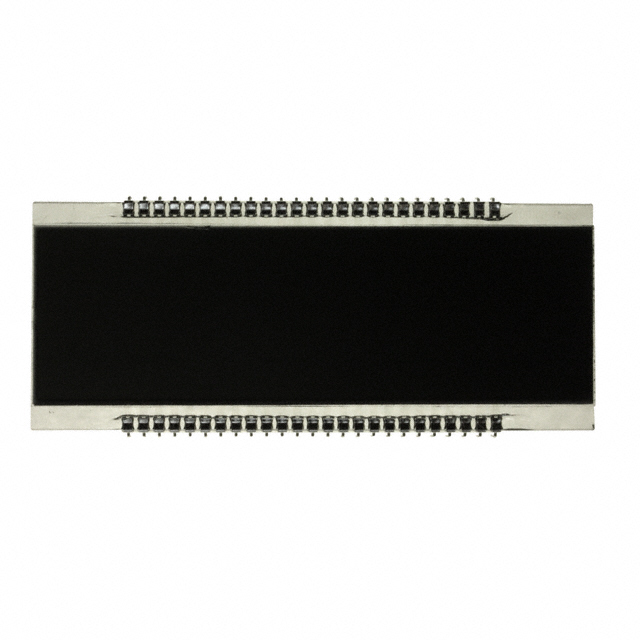

LCD-S601C71TR

Active

Lumex Opto/Components Inc.

LCD MOD 6 DIG 6 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 6 DIG 6 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD 6 DIG 6 X 1 REFLECTIVE

Part	Backlight	Background Color	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Size [z]	Character Size [y]	Display Format [x]	Display Format [y]	Character Format	Number of Characters	Display Mode	Display Type	Viewing Area [x]	Viewing Area [y]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]
Lumex Opto/Components Inc. LCD-S601C71TR	Without Backlight	Gray	5 V	3 V	17.99 mm	10.16 mm	6	1	7-Segment	6	Reflective	TN - Twisted Nematic	86.36 mm	24.13 mm	2.8 mm	38.1 mm	93.85 mm
Lumex Opto/Components Inc. LCD-S601C71TF	Without Backlight	Gray	5 V	3 V	17.99 mm	10.16 mm	6	1	7-Segment	6	Transflective	TN - Twisted Nematic	86.36 mm	24.13 mm	2.8 mm	38.1 mm	93.85 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 93.85mm x 38.10mm x 2.80mm
