9775 060100

Active

Belden Inc.

MULTI-PAIR 18COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 18COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9775 060100

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.655 "
Jacket (Insulation) Diameter [diameter]	16.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.321 mm
Jacket (Insulation) Thickness	0.052 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Usage	Shield Coverage	Wire Gauge	Conductor Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Shield Material	Length [x]	Length [x]	Features	Jacket Color	Length	Length
Belden Inc. 9775 060100	Audio Control Instrumentation	100 %	18 AWG	Copper Tinned	Polypropylene (PP)	19	30 AWG	UL Style 2919	Multi-Pair	0.655 "	16.64 mm	-20 C	80 C	Poly-Vinyl Chloride (PVC)	18	1.321 mm	0.052 in	Foil	Aluminum	30.5 m	100 ft	Drain Wire	Chrome
Belden Inc. 9775 060500	Audio Control Instrumentation	100 %	18 AWG	Copper Tinned	Polypropylene (PP)	19	30 AWG	UL Style 2919	Multi-Pair	0.655 "	16.64 mm	-20 C	80 C	Poly-Vinyl Chloride (PVC)	18	1.321 mm	0.052 in	Foil	Aluminum	152.4 m	500 '	Drain Wire	Chrome
Belden Inc. 9775 0601000	Audio Control Instrumentation	100 %	18 AWG	Copper Tinned	Polypropylene (PP)	19	30 AWG	UL Style 2919	Multi-Pair	0.655 "	16.64 mm	-20 C	80 C	Poly-Vinyl Chloride (PVC)	18	1.321 mm	0.052 in	Foil	Aluminum			Drain Wire	Chrome	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 23.61

General part information

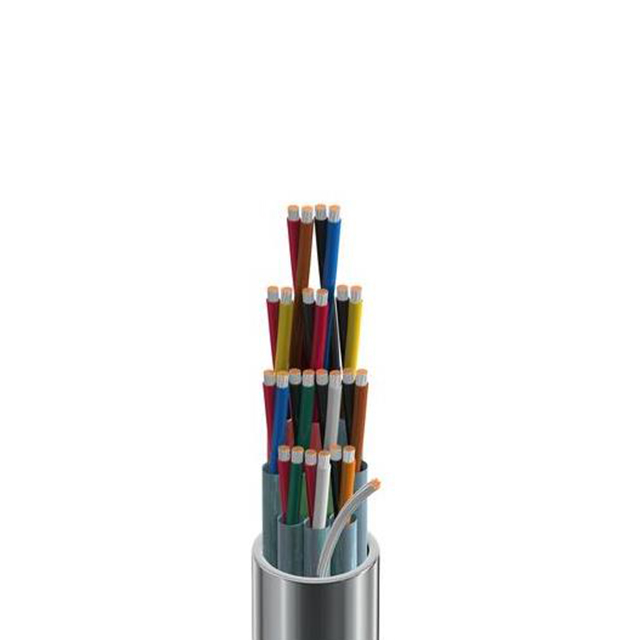

18 (9 Pair Twisted) Conductor Multi-Pair Cable Chrome 18 AWG Foil 100.0' (30.5m)
