5-103956-4
ActiveTE Connectivity AMP Connectors

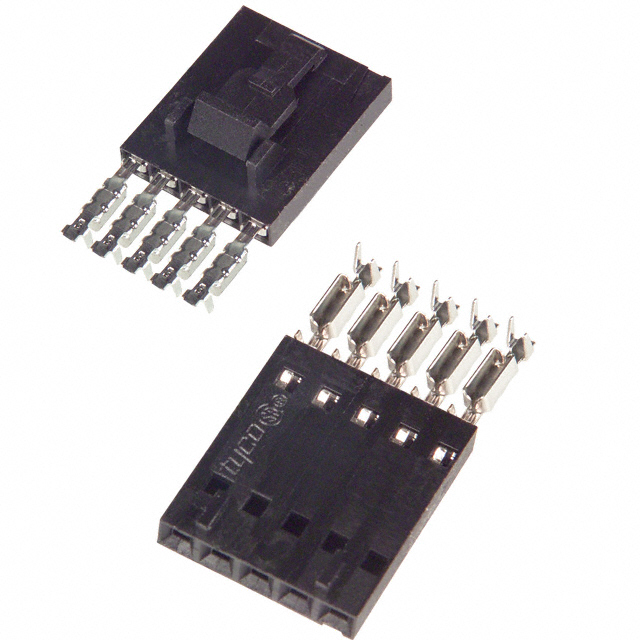

CONN RCPT 5POS IDC 22-26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103956-4
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS IDC 22-26AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103956-4 | 103956 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin, Tin-Lead |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 2 - 12 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 4 | $ 1.45 | |
| 12 | $ 1.33 | |||
| 44 | $ 1.29 | |||
| 88 | $ 1.27 | |||
| 132 | $ 1.18 | |||
| 264 | $ 1.16 | |||
| 528 | $ 1.06 | |||
| 1012 | $ 0.95 | |||
| 2508 | $ 0.88 | |||
103956 Series
CONN RCPT 2POS IDC 22-26AWG TIN
| Part | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Number of Rows | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Fastening Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Type | Color | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-103956-2 | 2 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete |
TE Connectivity AMP Connectors 1-103956-6 | 6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete |
TE Connectivity AMP Connectors 103956-6 | 7 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin-Lead | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete |
TE Connectivity AMP Connectors 1-103956-1 | 12 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin-Lead | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete |
TE Connectivity AMP Connectors 1-103956-5 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete | |
TE Connectivity AMP Connectors 5-103956-3 | 4 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete |
TE Connectivity AMP Connectors 5-103956-4 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete | |
TE Connectivity AMP Connectors 103956-1 | 2 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Tin-Lead | 22 AWG | 26 AWG | Latch Lock | 2.54 µm | 100 µin | Receptacle | Female Socket | Black | IDC | Discrete |
Description
General part information
103956 Series
5 Position Rectangular Receptacle Connector IDC Tin 22-26 AWG
