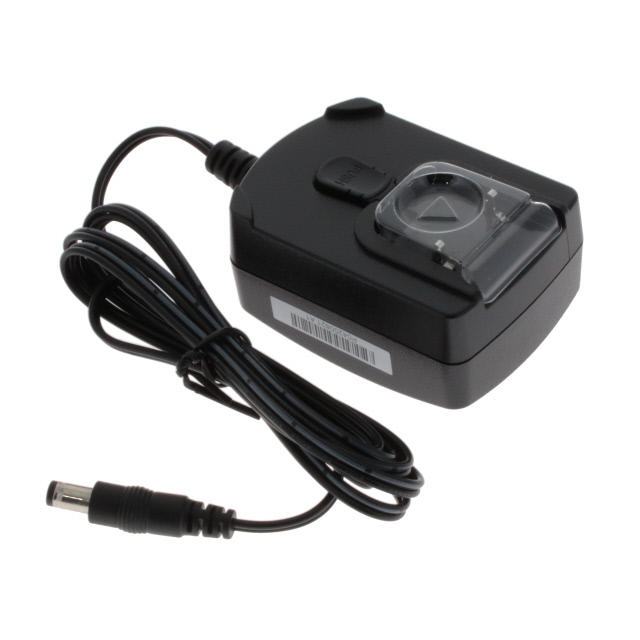

AA20R-240A-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 24V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA20R-240A-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 24V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA20R-240A-R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE, RCM |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 830 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption | 69 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 10 mm |
| Polarization | Positive Center |
| Power (Watts) | 20 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.85 in |
| Size / Dimension [x] | 72.5 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 33.3 mm |
| Size / Dimension [z] | 1.31 " |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.35 | |
| 5 | $ 11.36 | |||
| 10 | $ 10.95 | |||
| 25 | $ 10.44 | |||
| 50 | $ 10.07 | |||
| 100 | $ 9.71 | |||
| 250 | $ 9.26 | |||
| 500 | $ 8.93 | |||
Description
General part information
AA20R-240A-R
24V 20 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
