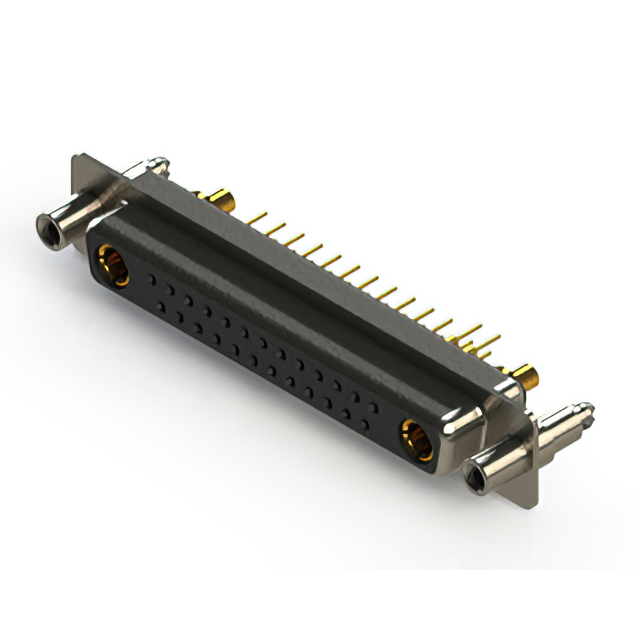

628-27W2224-2T6

Active

EDAC Inc.

CONN D-SUB RCPT 27POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-27W2224-2T6

Active

EDAC Inc.

CONN D-SUB RCPT 27POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-27W2224-2T6

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	27W2
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

628-27W Series

...

Part	Color	Flange Feature	Termination	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Type	Contact Finish	Material Flammability Rating	Shell Material, Finish	Voltage Rating	Connector Type	Current Rating (Amps)	Contact Finish Thickness	Current Rating (Amps)	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-27W2624-1N3	Black	4-40 Board Side	Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0	Nickel Plated Steel	125 VDC	Receptacle Female Sockets	10A 5A
EDAC Inc. 628-27W2224-4NC	Black		Solder	Through Hole	27W2	4	2			Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0	Nickel Plated Steel	125 VDC	Receptacle Female Sockets		Flash	5 A 40 A	M3	M3
EDAC Inc. 628-27W2624-1NC	Black		Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0	Nickel Plated Steel	125 VDC	Receptacle Female Sockets	10A 5A			M3	M3
EDAC Inc. 628-27W2224-2TB	Black	Board Side (M3)	Solder	Through Hole	27W2	4	2			Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0		125 VDC	Receptacle Female Sockets		Flash	5 A 20 A
EDAC Inc. 628-27W2224-2T6	Black	4-40	Solder	Through Hole	27W2	4	2			Board Lock Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0		125 VDC	Receptacle Female Sockets		Flash	5 A 20 A
EDAC Inc. 628-27W2624-2N2	Black	4-40 Board Side	Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0	Nickel Plated Steel	125 VDC	Receptacle Female Sockets			5 A 20 A
EDAC Inc. 628-27W2624-1TA	Black	Board Side (M3)	Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0		125 VDC	Receptacle Female Sockets	10A 5A
EDAC Inc. 628-27W2624-1T6	Black	4-40	Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Board Lock Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0		125 VDC	Receptacle Female Sockets	10A 5A
EDAC Inc. 628-27W2624-2T3	Black	4-40 Board Side	Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0		125 VDC	Receptacle Female Sockets			5 A 20 A
EDAC Inc. 628-27W2624-1T2	Black	4-40 Board Side	Solder	Through Hole	27W2	4	2	0.76 Ám	30 Áin	Shielded	Copper Alloy	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Signal and Power	Gold	UL94 V-0		125 VDC	Receptacle Female Sockets	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 10.13

Description

General part information

628-27W Series

27 (25 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
