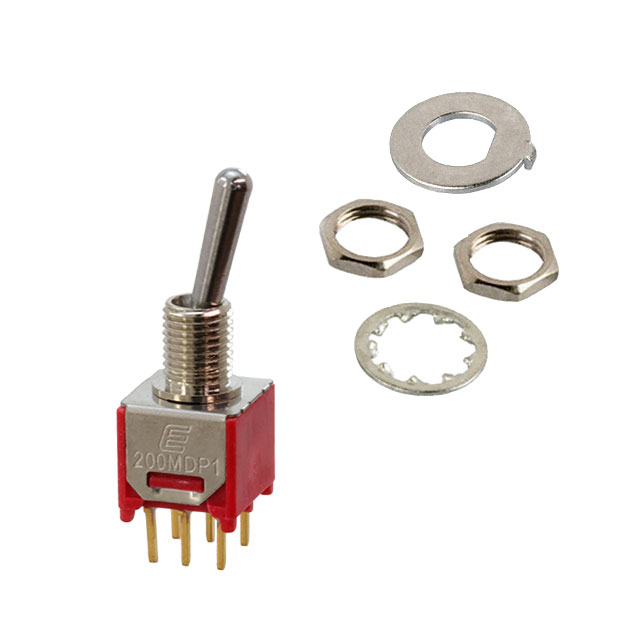

200MDP1T1B1M2REH

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

200MDP1T1B1M2REH

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.19
		10	$ 3.74
		25	$ 3.54
		50	$ 3.42
		192	$ 3.24
		384	$ 3.10
		576	$ 2.85
		1152	$ 2.72

Description

General part information

200MDP1 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MDP1T1B1M2REH	200MDP1 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	9.4 mm	0.5 - 11.68 in
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	10-48	Unthreaded, 10-48, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 - 3 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Vertical, Right Angle, Panel Mount, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm	0.25 - 4.95 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

200MDP1 Series

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Electrical Life	Actuator Material	Mounting Type	Voltage Rating - DC	Actuator Type	Switch Function	Circuit	Termination Style	Illumination	Bushing Thread	Voltage Rating - AC	Features	Panel Cutout Dimensions [diameter]	Actuator Length [x]
E-Switch 200MDP1T3B2M7RE	-30 ░C	85 °C	0.4 VA	30000 Cycles	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	20 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	Unthreaded	20 V	Epoxy Sealed Terminals
E-Switch 200MDP1T4B1M6RE	-30 ░C	85 °C	0.4 VA	30000 Cycles	Brass, Chrome Plated	Panel Mount, Right Angle	20 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	10-48	20 V	Epoxy Sealed Terminals	4.95 mm	0.5 in
E-Switch 200MDP1T4B6M2RE	-30 ░C	85 °C	0.4 VA	30000 Cycles	Brass, Chrome Plated	Through Hole	20 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	Unthreaded	20 V	Epoxy Sealed Terminals		10.41 mm
E-Switch 200MDP1T4B7M6QEH	-30 ░C	85 °C	3 A	30000 Cycles	Brass, Chrome Plated	Panel Mount, Right Angle	28 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	1/4-40	120 V	Epoxy Sealed Terminals	0.25 in	11.68 mm
E-Switch 200MDP1T5B4M7QE	-30 ░C	85 °C	3 A	30000 Cycles	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	28 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	Unthreaded	120 V	Epoxy Sealed Terminals		7.88 mm
E-Switch 200MDP1T3B4M7QE	-30 ░C	85 °C	3 A	30000 Cycles	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	28 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	Unthreaded	120 V	Epoxy Sealed Terminals
E-Switch 200MDP1T2B4M6RE	-30 ░C	85 °C	0.4 VA	30000 Cycles	Brass, Chrome Plated	Through Hole, Right Angle	20 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	Unthreaded	20 V	Epoxy Sealed Terminals		5.33 mm
E-Switch 200MDP1T2B3M1REH	-30 ░C	85 °C	0.4 VA	30000 Cycles	Brass, Chrome Plated		20 V	Standard Round	On-On	DPDT	Solder Lug	Non-Illuminated	10-48	20 V	Epoxy Sealed Terminals	4.95 mm	5.33 mm
E-Switch 200MDP1T2B1M1QEH	-30 ░C	85 °C	3 A	30000 Cycles	Brass, Chrome Plated		28 V	Standard Round	On-On	DPDT	Solder Lug	Non-Illuminated	10-48	120 V	Epoxy Sealed Terminals	4.95 mm	5.33 mm
E-Switch 200MDP1T2B1M6RE	-30 ░C	85 °C	0.4 VA	30000 Cycles	Brass, Chrome Plated	Panel Mount, Right Angle	20 V	Standard Round	On-On	DPDT	PC Pin	Non-Illuminated	10-48	20 V	Epoxy Sealed Terminals	4.95 mm	5.33 mm
