W1S108-K00S3

Active

Rosenberger

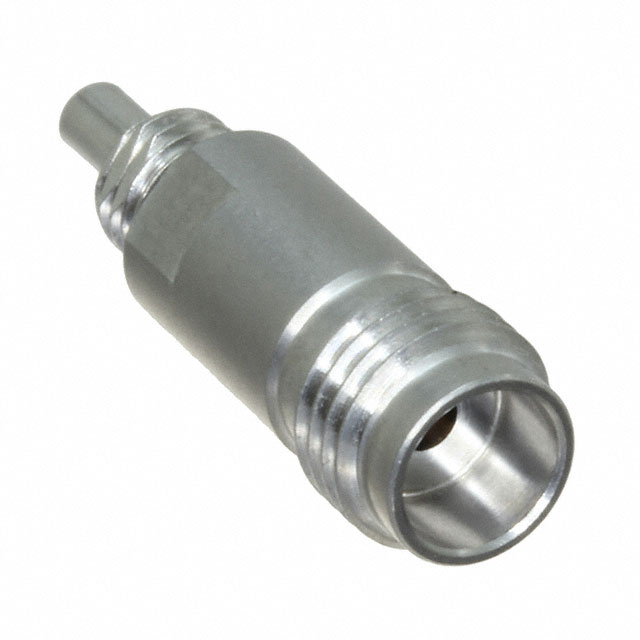

ADAPT WSMP PLUG - 1.85MM JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT WSMP PLUG - 1.85MM JACK

Technical Specifications

Parameters and characteristics for this part

Specification	W1S108-K00S3

Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	WSMP Plug, Male Pin
Convert To (Adapter End)	Female Socket, 1.85mm Jack
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Style	Straight

ADAPT WSMP PLUG - 1.85MM JACK

Part	Convert To (Adapter End)	Mounting Type	Conversion Type	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Dielectric Material	Adapter Type	Center Contact Plating	Convert From (Adapter End)	Frequency - Max [Max]	Style	Impedance
Rosenberger W1S108-K00S3	1.85mm Jack, Female Socket	Free Hanging (In-Line)	Between Series	Stainless Steel	165 °C	-55 °C	Beryllium Copper	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)	Plug to Jack	Gold	WSMP Plug, Male Pin	65 GHz	Straight	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 1062.85

General part information

Adapter Coaxial Connector WSMP Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
