5975011121
ActiveFair-Rite Products Corp.

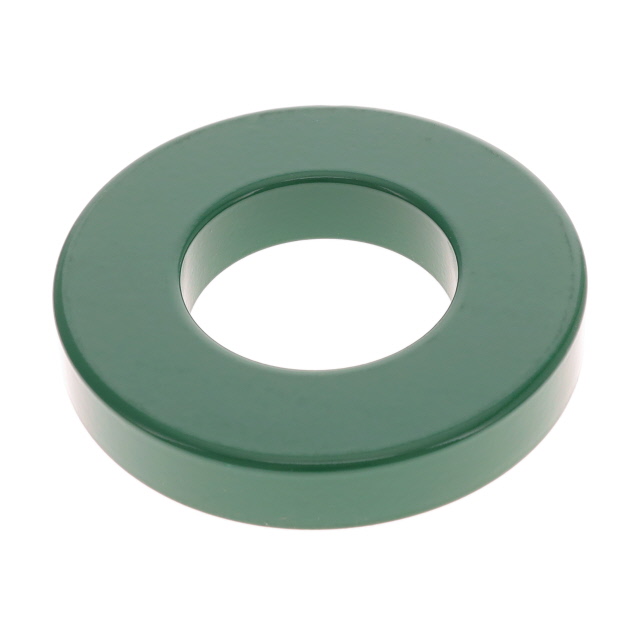

FERRITE CORE TOROID 8.1UH 75
5975011121
ActiveFair-Rite Products Corp.
FERRITE CORE TOROID 8.1UH 75
Description
General part information
5975011121
Plastic 75 Ferrite Core Toroid Type Length Width 2.978" (75.65mm) Diameter 0.535" (13.60mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 5975011121 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 0.77374 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 2.978 in |
| Effective Area (Ae) | 214 mm² |
| Effective Length (le) | 165 mm |
| Effective Magnetic Volume (Ve) | 35288 mm³ |
| Finish | Plastic |
| Gap | Ungapped |
| Height | 0.535 in |
| Inductance Factor (Al) | 8.1 µH |
| Initial Permeability (µi) | 5000 |
| Material | 75 |
| Material Temperature Rating | 75 °C |
| Tolerance (Negative) | 30 % |
| Tolerance (Positive) | 25 % |
