N4616-2300-RB
Active3M

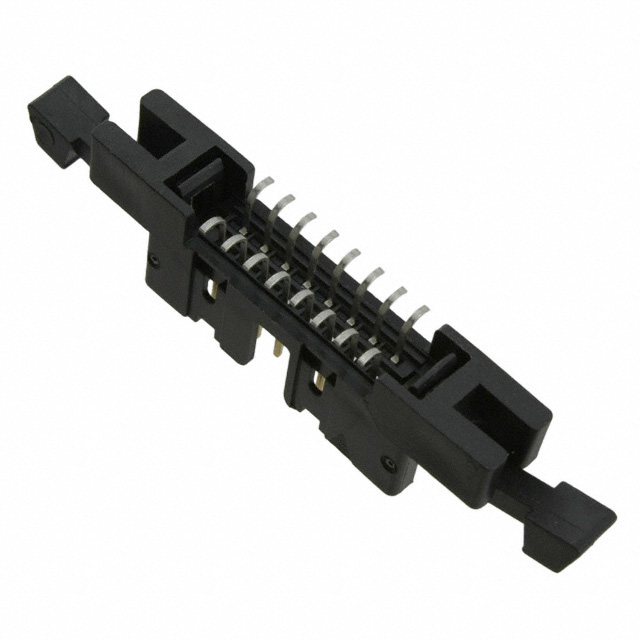

CONN HEADER SMD 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
N4616-2300-RB
Active3M
CONN HEADER SMD 16POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N4616-2300-RB | N4616 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 300 µin | 300 µin |
| Contact Finish Thickness - Post | 7.62 µm | 7.62 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.25 A | 1.25 A |
| Fastening Type | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.525 in | 0.525 in |
| Insulation Height | 13.34 mm | 13.34 mm |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 16 | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
N4616 Series
CONN HEADER SMD 16POS 2.54MM
| Part | Mounting Type | Number of Positions | Style | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Current Rating (Amps) | Fastening Type | Material Flammability Rating | Contact Finish - Post | Shrouding | Number of Rows | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Termination | Insulation Color | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Surface Mount | 16 | Board to Cable/Wire | Header | 300 µin | 7.62 µm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.25 A | Latch Lock/Eject Hooks, Short | UL94 V-0 | Tin | Shrouded - 4 Wall | 2 | Copper Alloy | 30 Áin | 0.76 Ám | 0.525 in | 13.34 mm | Solder | Black | Gold | 0.1 in | 2.54 mm | All | Square | 105 ░C | -55 °C | 2.54 mm | 0.1 in | Male Pin | |
Surface Mount | 16 | Board to Cable/Wire | Header | 300 µin | 7.62 µm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.25 A | Latch Lock/Eject Hooks, Long | UL94 V-0 | Tin | Shrouded - 4 Wall | 2 | Copper Alloy | 30 Áin | 0.76 Ám | 0.525 in | 13.34 mm | Solder | Black | Gold | 0.1 in | 2.54 mm | All | Square | 105 ░C | -55 °C | 2.54 mm | 0.1 in | Male Pin | |
Surface Mount | 16 | Board to Cable/Wire | Header | 300 µin | 7.62 µm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.25 A | Push-Pull | UL94 V-0 | Tin | Shrouded - 4 Wall | 2 | Copper Alloy | 30 Áin | 0.76 Ám | 0.525 in | 13.34 mm | Solder | Black | Gold | 0.1 in | 2.54 mm | All | Square | 105 ░C | -55 °C | 2.54 mm | 0.1 in | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N4616 Series
Connector Header Surface Mount 16 position 0.100" (2.54mm)
