Description
General part information

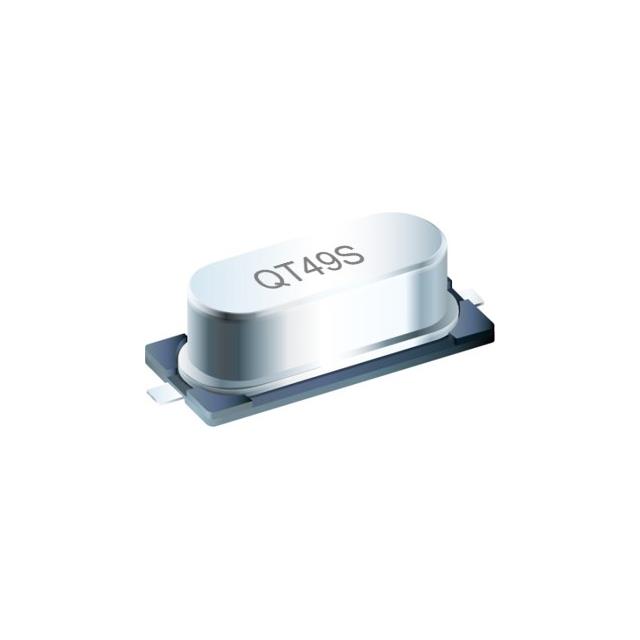

QT49S-16.384MEIK-T
16.384 MHz ±10ppm Crystal 20pF 30 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | QT49S-16.384MEIK-T |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 16.384 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.161 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | HC-49/US |
| Package Name | HC-49S |
| Size / Dimension Length | 0.449 in |
| Size / Dimension Width | 0.189 in |
| Type | MHz Crystal |
