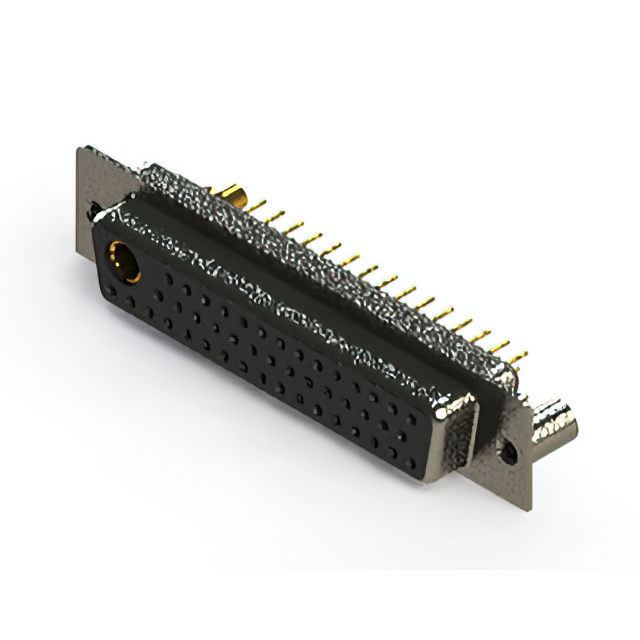

628-47W1624-2TB

Active

EDAC Inc.

CONN D-SUB RCPT 47POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-47W1624-2TB

Active

EDAC Inc.

CONN D-SUB RCPT 47POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-47W1624-2TB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	47
Number of Positions [custom]	1
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D), 47W1
Termination	Solder
Voltage Rating	125 VDC

628-47W Series

...

Part	Dielectric Material	Mounting Type	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Connector Style	Connector Type	Shell Material, Finish	Termination	Features	Shell Size, Connector Layout	Contact Finish	Number of Rows	Current Rating (Amps)	Number of Positions [custom]	Number of Positions	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Current Rating (Amps)	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-47W1624-1N6	Polyester Thermoplastic	Through Hole	125 VDC	0.76 Ám	30 Áin	4-40	Combo D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Solder	Board Lock Shielded	47W1 5 (DD D)	Gold	3	10A 5A	1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy
EDAC Inc. 628-47W1622-7T1	Polyester Thermoplastic	Free Hanging (In-Line)	125 VDC	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Combo D-Sub	Receptacle Female Sockets			Shielded	47W1 5 (DD D)	Gold	3			47	Black	Coax Signal	-55 °C	125 °C	UL94 V-0	Copper Alloy
EDAC Inc. 628-47W1624-2TB	Polyester Thermoplastic	Through Hole	125 VDC	0.76 Ám	30 Áin	Board Side (M3)	Combo D-Sub	Receptacle Female Sockets		Solder	Shielded	47W1 5 (DD D)	Gold	3		1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy	5 A 20 A
EDAC Inc. 628-47W1624-3NA	Polyester Thermoplastic	Through Hole	125 VDC	0.76 Ám	30 Áin	Board Side (M3)	Combo D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Solder	Shielded	47W1 5 (DD D)	Gold	3		1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy	5 A 30 A
EDAC Inc. 628-47W1224-4T3	Polyester Thermoplastic	Through Hole	125 VDC			4-40 Board Side	Combo D-Sub	Receptacle Female Sockets		Solder	Shielded	47W1 5 (DD D)	Gold	3		1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy	5 A 40 A	Flash
EDAC Inc. 628-47W1622-5T1	Polyester Thermoplastic	Free Hanging (In-Line)	125 VDC	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Combo D-Sub	Receptacle Female Sockets			Shielded	47W1 5 (DD D)	Gold	3			47	Black	Coax Signal	-55 °C	125 °C	UL94 V-0	Copper Alloy
EDAC Inc. 628-47W1624-4T5	Polyester Thermoplastic	Through Hole	125 VDC	0.76 Ám	30 Áin	4-40 Board Side	Combo D-Sub	Receptacle Female Sockets		Solder	Board Lock Shielded	47W1 5 (DD D)	Gold	3		1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy	5 A 40 A
EDAC Inc. 628-47W1624-7T2	Polyester Thermoplastic	Through Hole	125 VDC	0.76 Ám	30 Áin	4-40 Board Side	Combo D-Sub	Receptacle Female Sockets		Solder	Shielded	47W1 5 (DD D)	Gold	3			47	Black	Coax Signal	-55 °C	125 °C	UL94 V-0	Copper Alloy
EDAC Inc. 628-47W1224-3NC	Polyester Thermoplastic	Through Hole	125 VDC				Combo D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Solder	Shielded	47W1 5 (DD D)	Gold	3		1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy	5 A 30 A	Flash	M3	M3
EDAC Inc. 628-47W1224-3NE	Polyester Thermoplastic	Through Hole	125 VDC			M3	Combo D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Solder	Board Lock Shielded	47W1 5 (DD D)	Gold	3		1	47	Black	Signal and Power	-55 °C	125 °C	UL94 V-0	Copper Alloy	5 A 30 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 36.77

Description

General part information

628-47W Series

47 (46 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
