Description
General part information
09330009830

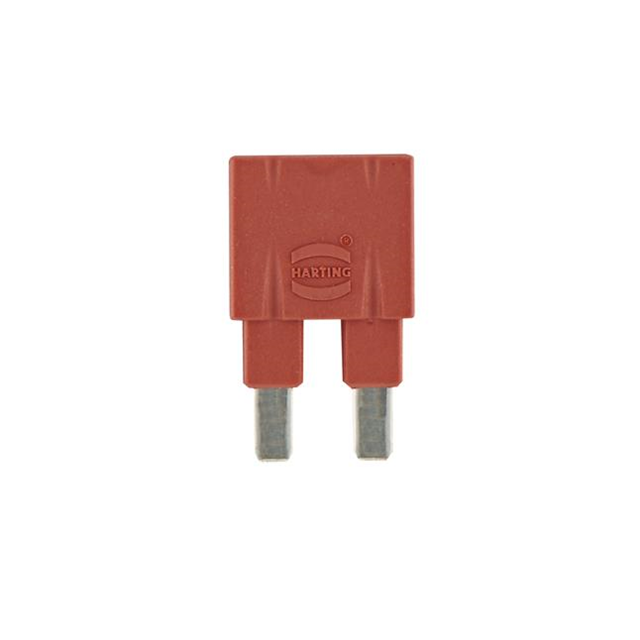

2 (1 x 2) Position Shunt Connector Red Insulated 0.264" (6.70mm) Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | 09330009830 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Current Rating | 16 A |
| Gender | Male Pins |
| Grid Columns | 2 |
| Grid Rows | 1 |
| Height | 0.445 in |
| Housing Material | Nylon, Polyamide, PA |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 2 |
| Pitch | 0.264 in |
| Type | Insulated |
| Voltage Rating | 500 V |
