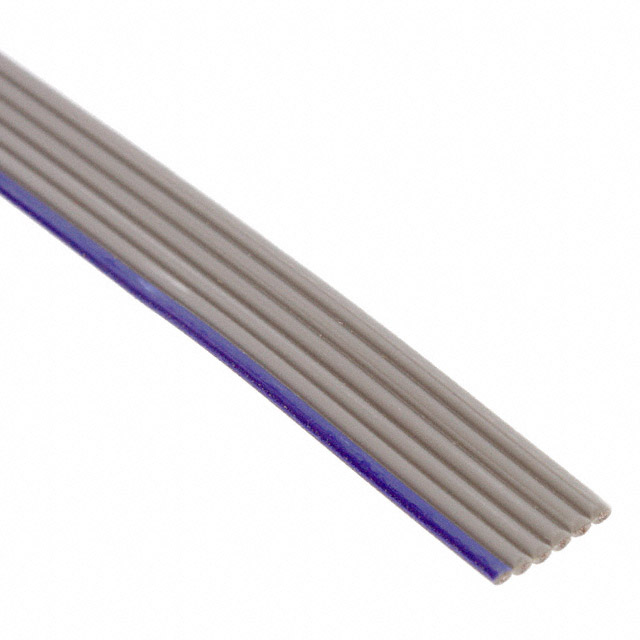

HF625/06SF-30M

Active

3M (TC)

CBL RIBN 6COND 0.039 GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HF625/06SF-30M

Active

3M (TC)

CBL RIBN 6COND 0.039 GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HF625/06SF-30M

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Jacket (Insulation) Material	Polyolefin (PO)
Jacket Color	Gray
Length	98.4 ft
Length	30 m
Number of Conductors	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 21682
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	6 mm
Ribbon Width	0.236 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

HF625 Series

Part	Ribbon Width	Ribbon Width	Ratings	First Conductor Mark	Cable Type	Conductor Material	Voltage	Features	Jacket (Insulation) Material	Jacket Color	Number of Conductors	Wire Gauge	Pitch [x]	Pitch [x]	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width [y]	Ribbon Width [y]
3M (TC) HF625/06SF-30M	6 mm	0.236 in	UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	6	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft	30 m	-40 °C	105 ░C	0.89 mm	0.035 in
3M (TC) HF625/30-30M	1.181 in		UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	30	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft	30 m	-40 °C	105 ░C	0.89 mm	0.035 in	30 mm
3M (TC) HF625/44-30M			UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	44	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft	30 m	-40 °C	105 ░C	0.89 mm	0.035 in		43.99 mm	1.732 in
3M (TC) HF625/34-100M			UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	34	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft 164 ft 229.7 ft 328.1 ft	30 m 50 m 70 m 100 m	-40 °C	105 ░C	0.89 mm	0.035 in				1.339 "	34 mm
3M (TC) HF625/28SF-100M	27.99 mm	1.102 in	UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	28	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	328.1 ft	100 m	-40 °C	105 ░C	0.89 mm	0.035 in
3M (TC) HF625/20SF-30M	20 mm	0.787 in	UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	20	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft	30 m	-40 °C	105 ░C	0.89 mm	0.035 in
3M (TC) HF625/30-100M	1.181 in		UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	30	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft 164 ft 229.7 ft	30 m 50 m 70 m	-40 °C	105 ░C	0.89 mm	0.035 in	30 mm
3M (TC) HF625/08-100M	8 mm	0.315 in	UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	8	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft 164 ft 229.7 ft 328.1 ft	30 m 50 m 70 m 100 m	-40 °C	105 ░C	0.89 mm	0.035 in
3M (TC) HF625/28SF-30M	27.99 mm	1.102 in	UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	28	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft	30 m	-40 °C	105 ░C	0.89 mm	0.035 in
3M (TC) HF625/26-30M	26.01 mm	1.024 in	UL Style 21682	Red	Flat Cable	Copper Tinned	300 V	Zippable	Polyolefin (PO)	Gray	26	28 AWG	0.039 in	1 mm	Unshielded	7	36 AWG	98.4 ft	30 m	-40 °C	105 ░C	0.89 mm	0.035 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	300	$ 1.77

Description

General part information

HF625 Series

Flat Ribbon Cable Gray 6 Conductors 0.039" (1.00mm) Flat Cable 98.4' (30.00m)
