LPW682M1HO45V-W
ObsoleteCornell Dubilier Knowles

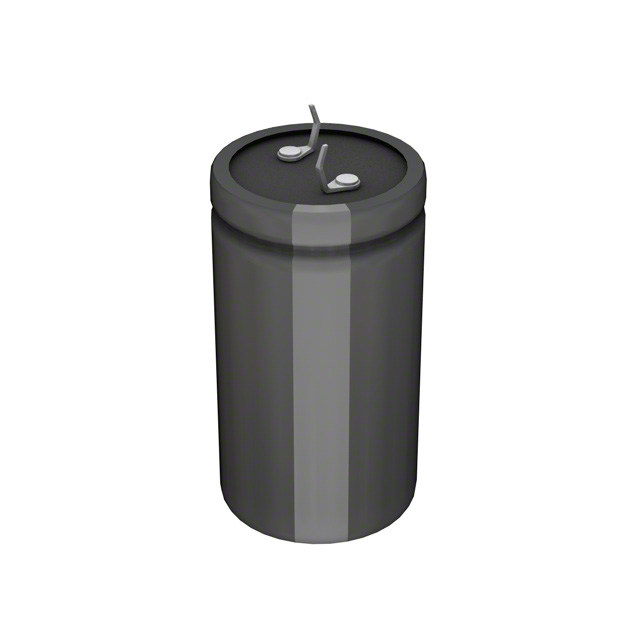

CAP ALUM 6800UF 20% 50V SNAP TH
LPW682M1HO45V-W
ObsoleteCornell Dubilier Knowles
CAP ALUM 6800UF 20% 50V SNAP TH
Description
General part information
LPW682M1HO45V-W
6800 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 73mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LPW682M1HO45V-W |
|---|---|
| Applications | General Purpose |
| Capacitance | 6800 µF |
| ESR (Equivalent Series Resistance) | 73 mOhm |
| Height - Seated (Max) | 1.772 in |
| Lead Spacing | 0.394 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 4.044 A, 3.37 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
