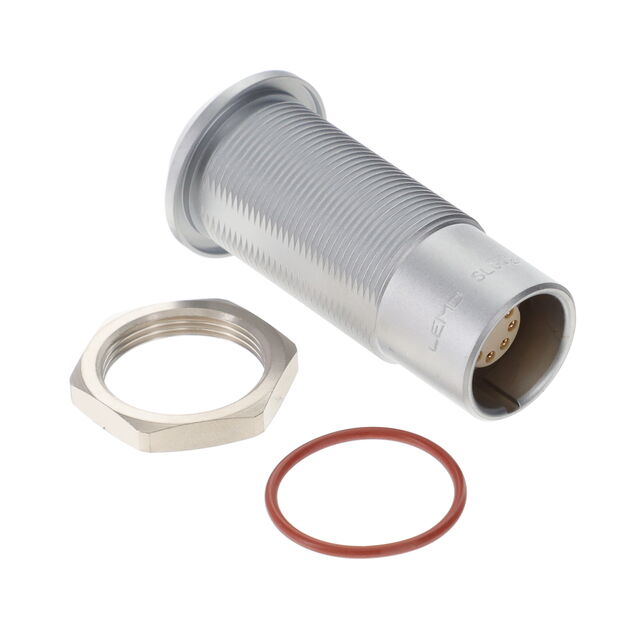

SLG.2K.308.CLAP
ActiveLEMO
CONN ADAPTER 8P-8P F-M PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLG.2K.308.CLAP
ActiveLEMO
CONN ADAPTER 8P-8P F-M PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SLG.2K.308.CLAP | SLG.2K Series |
|---|---|---|
| Connector Style | Standard | Standard |
| Convert From (Adapter End) | Female Sockets | Female Sockets |
| Convert To (Adapter End) | Male Pins | Male Pins |
| Current Rating (Amps) | 10 A | 10 - 15 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Mounting Hardware | Mounting Hardware |
| Housing Color | Silver | Silver |
| Housing Finish | Chrome | Chrome |
| Housing Material | Brass | Brass |
| Includes | 1 Adapter, 1 Nut | 1 Adapter, 1 Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions (Convert From) | 8 | 4 - 8 |
| Number of Positions (Convert To) | 8 | 4 - 8 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation (Convert From) | L | L |
| Orientation (Convert To) | G | G |
| Shell Size - Insert (Convert From) | 308 | 304 - 308 |
| Shell Size - Insert (Convert To) [custom] | 308 | 304 - 308 |
| Shielding | Shielded | Shielded |
SLG.2K Series
CONN ADAPTER 8P-8P F-M PNL MNT
| Part | Fastening Type | Housing Color | Ingress Protection | Shielding | Shell Size - Insert (Convert From) | Includes | Orientation (Convert To) | Convert From (Adapter End) | Features | Current Rating (Amps) | Mounting Feature | Connector Style | Orientation (Convert From) | Shell Size - Insert (Convert To) [custom] | Convert To (Adapter End) | Number of Positions (Convert From) | Number of Positions (Convert To) | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO SLG.2K.308.CLAP | Push-Pull | Silver | IP68 - Dust Tight, Waterproof | Shielded | 308 | 1 Adapter, 1 Nut | G | Female Sockets | Mounting Hardware | 10 A | Bulkhead - Rear Side Nut | Standard | L | 308 | Male Pins | 8 | 8 | -20 C | 80 C | Brass | Chrome |
LEMO SLG.2K.304.CLAP | Push-Pull | Silver | IP68 - Dust Tight, Waterproof | Shielded | 304 | 1 Adapter, 1 Nut | G | Female Sockets | Mounting Hardware | 15 A | Bulkhead - Rear Side Nut | Standard | L | 304 | Male Pins | 4 | 4 | -20 C | 80 C | Brass | Chrome |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 168.64 | |
| 10 | $ 154.75 | |||
| 25 | $ 148.80 | |||
| 50 | $ 143.84 | |||
Description
General part information
SLG.2K Series
Circular Connector Standard 8/8 Female Sockets/Male Pins Panel Mount
