1-87195-8
ActiveTE Connectivity AMP Connectors

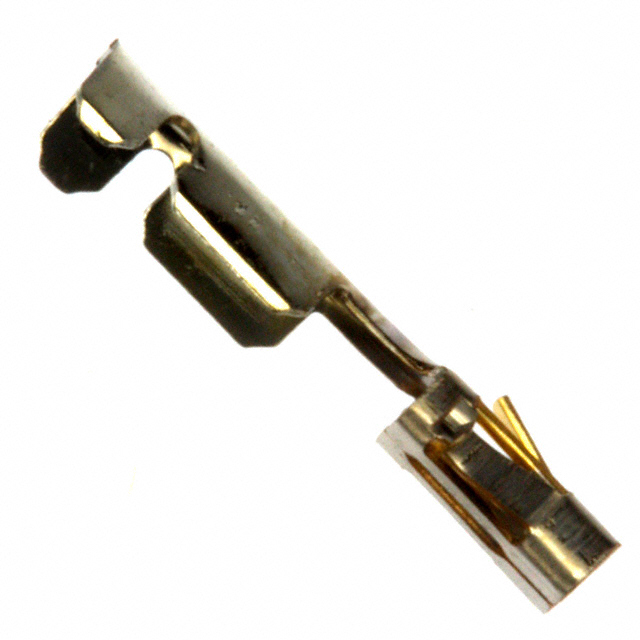

CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-87195-8
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-87195-8 | 87195 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 - 30 Áin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 0.76 Ám |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
87195 Series
CONN SOCKET 20-24AWG CRIMP GOLD
| Part | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-87195-1 | Gold | 20 AWG | 24 AWG | Crimp | Socket | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors 1-87195-8 | Gold | 20 AWG | 24 AWG | Crimp | Socket | 0.38 µm | 15 µin |
TE Connectivity AMP Connectors 2-87195-0 | Gold | 20 AWG | 24 AWG | Crimp | Socket | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.41 | |
Description
General part information
87195 Series
Socket Contact Gold 20-24 AWG Crimp
