Description
General part information

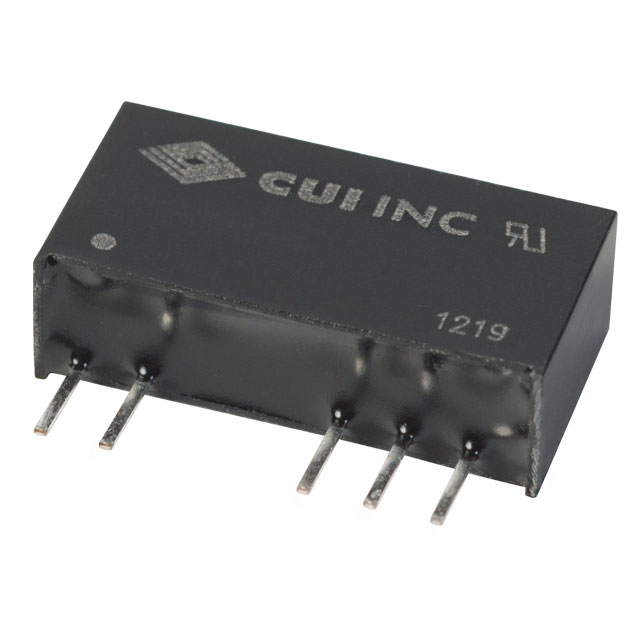

VESD1-S15-D15-SIP
Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 13.5V - 16.5V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VESD1-S15-D15-SIP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 33 mA |
| Efficiency | 79 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 0.75 in |
| Size / Dimension Width | 0.24 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 16.5 V |
| Voltage - Input (Min) | 13.5 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
