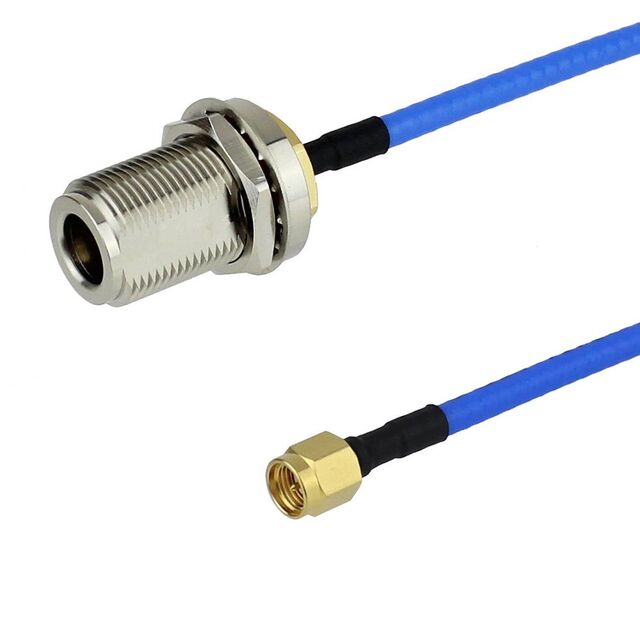

Specification	FMC0211141-24

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	Hand Formable
Cable Type Size	0.141
Color	Blue
Connector Impedance	50 Ohms
Frequency - Max	6000 MHz
Length	24 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	SMA, N-Type
