HEEE-048-F
ActiveTE Connectivity AMP Connectors

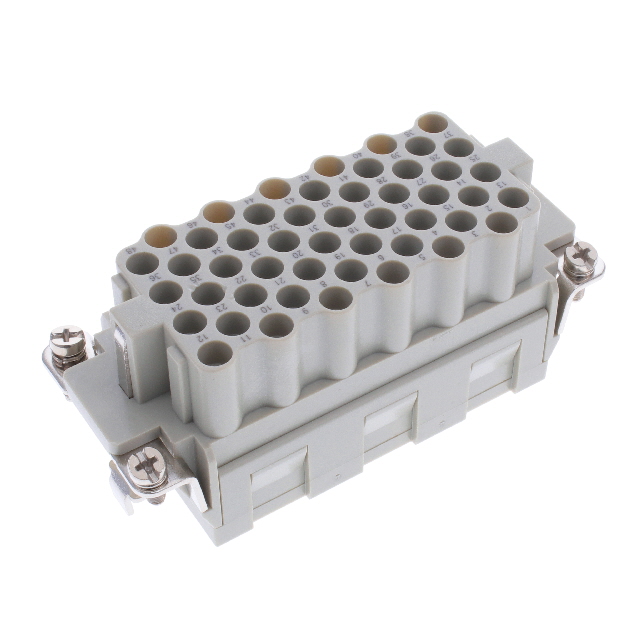

INSERT FML 48POS+1GND HEEE-048-F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEEE-048-F
ActiveTE Connectivity AMP Connectors
INSERT FML 48POS+1GND HEEE-048-F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HEEE-048-F |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEF, DEF |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.59 | |
| 10 | $ 14.29 | |||
| 25 | $ 13.91 | |||
| 50 | $ 13.38 | |||
T2050482201 Series
INSERT FML 48POS+1GND HEEE-048-F
| Part | Size | Housing Material | Material Flammability Rating | Number of Positions | Gender | Termination Style | Connector Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-048-F | H16B | Polycarbonate (PC) | EN45545 | 48 | Female | Crimp | Insert without Contacts | 400 V | 125 °C | -40 °C | CEF, DEF | 16 A |
Description
General part information
T2050482201 Series
Female Insert without Contacts 48+Ground Position Crimp
