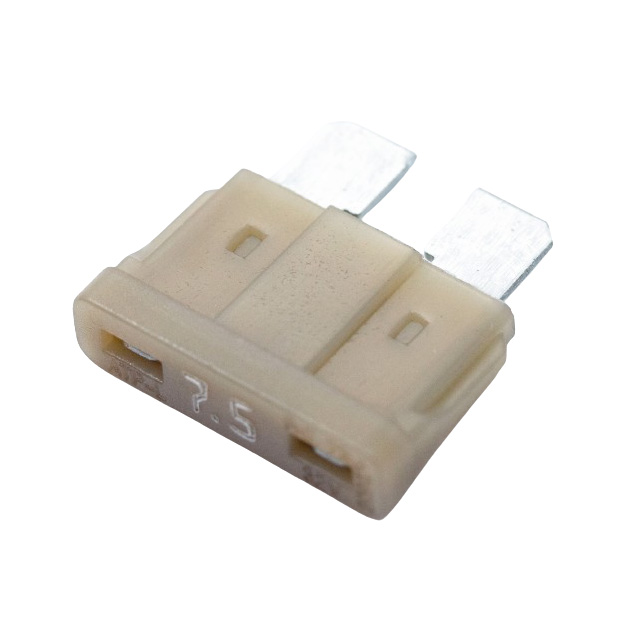

ANR-7.5A

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-7.5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Brown
Current Rating (Amps)	7.5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

FUSE AUTO 7.5A 32VDC BLADE

Part	Current Rating (Amps)	Mounting Type	Fuse Type	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating - DC	Response Time	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Package / Case
OptiFuse ANR-7.5A	7.5 A	Requires Holder	Automotive	1 kA	-40 °C	105 ░C	Brown	32 V	Fast Blow	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	ISO, SAE	ATC, ATO, Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20

General part information

7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
