CH87162V201
ActiveCvilux USA
2.54MM(.100) DUAL ROW BOARD STRA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCH8720SC
CH87162V201
ActiveCvilux USA
2.54MM(.100) DUAL ROW BOARD STRA
Deep-Dive with AI
DocumentsCH8720SC
Technical Specifications
Parameters and characteristics for this part
| Specification | CH87162V201 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post [x] | 0.11 in |
| Contact Length - Post [x] | 2.8 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Detent Lock |
| Insulation Color | Black |
| Insulation Height | 0.358 in |
| Insulation Height | 9.09 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.35 | |
| 10 | $ 0.26 | |||
| 80 | $ 0.21 | |||
| 440 | $ 0.17 | |||
| 945 | $ 0.16 | |||
| 4900 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
Description
General part information

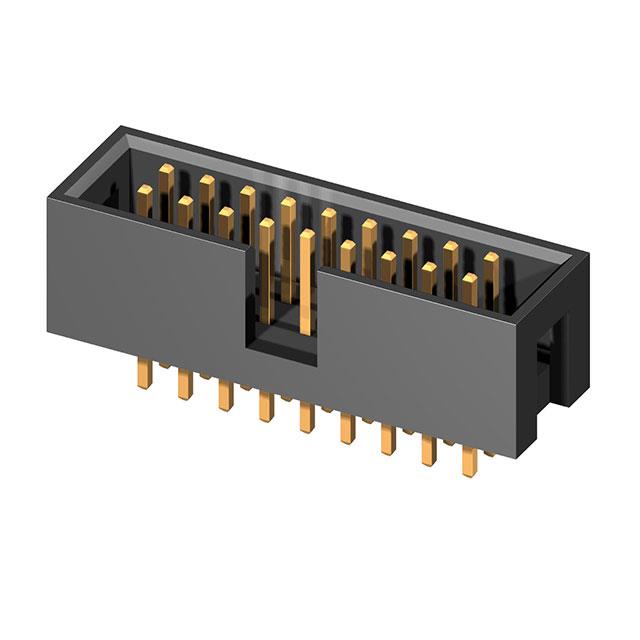

CH87162V201
Connector Header Through Hole 16 position 0.100" (2.54mm)
Documents
Technical documentation and resources
