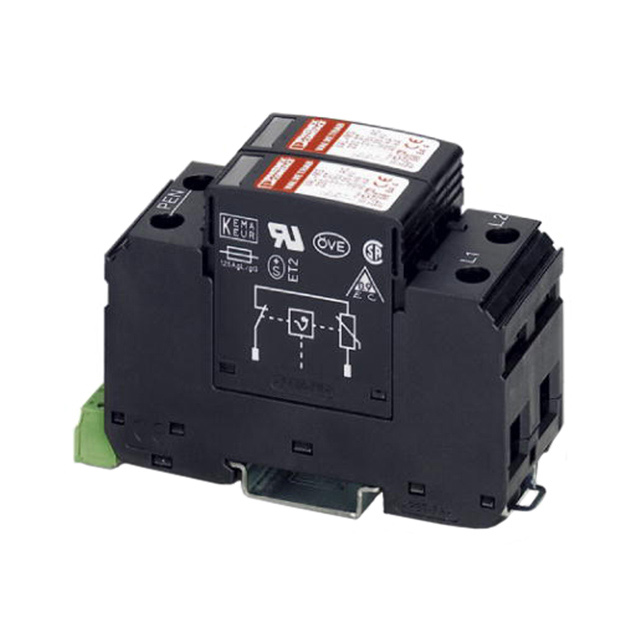

2800102
ObsoletePhoenix Contact
SPD TYPE 2 550VAC MCOV 2 POLE
2800102
ObsoletePhoenix Contact
SPD TYPE 2 550VAC MCOV 2 POLE
Description
General part information
2800102
SPD TYPE 2 550VAC MCOV 2 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 2800102 |
|---|---|
| Approval Agency | CCA, cUL, CSA, OVE, CB, cULus, UL |
| Current - Discharge (Max) | 40 kA |
| Current - Discharge (Nom) | 20 kA |
| Current - Short Circuit Rating (SCCR) | 25 kA |
| Features | Remote Signaling Contacts |
| Form | Module Only |
| Mounting Type | DIN Rail |
| Number of Poles | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 550 VAC |
| Voltage - Protection Level (VP) (2416) | 1.35 kV |
