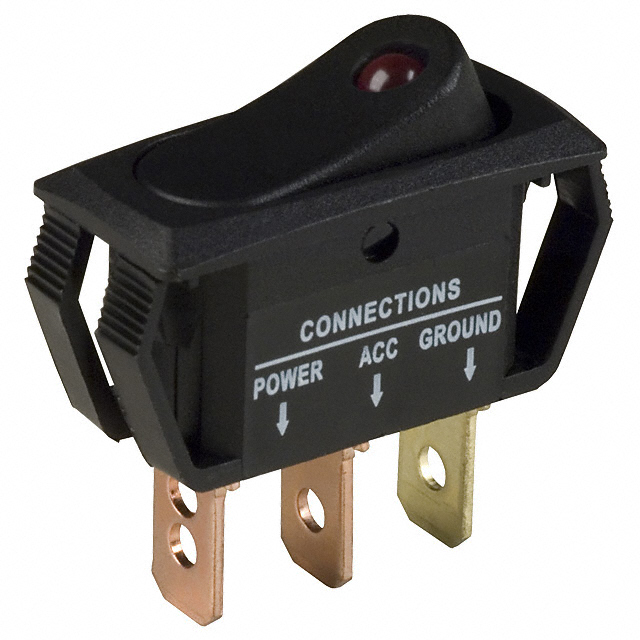

CLS-RR11A12251R
ActiveLumex Opto/Components Inc.
SWITCH ROCKER SPST 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-RR11A12251R
ActiveLumex Opto/Components Inc.
SWITCH ROCKER SPST 25A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLS-RR11A12251R | CLS-RR11 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated | Concave (Curved) - Illuminated, Concave (Standard V) - Illuminated |
| Circuit | SPST | SPST |
| Color - Actuator/Cap | Black | Black |
| Current Rating (Amps) | 25 A | 10 - 25 A |
| Illumination Type, Color | Red, LED | Red, LED, Blue, Yellow, Green |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut |
| Panel Cutout Dimensions | - | 12 mm |
| Panel Cutout Dimensions [x] | 28.7 mm | 27.8 - 28.7 mm |
| Panel Cutout Dimensions [y] | 11.6 mm | 11.6 - 13.8 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.187" (4.7mm), Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | - | 125 V |
| Voltage Rating - DC | 12 V | 12 V |
CLS-RR11 Series
SWITCH ROCKER SPST 10A 125V
| Part | Termination Style | Actuator Marking | Circuit | Illumination Type, Color | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Actuator Type | Color - Actuator/Cap | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - DC | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. CLS-RR11A125500R | Quick Connect - 0.187" (4.7mm) | No Marking | SPST | LED, Red | 10 A | Panel Mount, Snap-In | 125 V | Concave (Curved) - Illuminated | Black | On-Off | ||||
Lumex Opto/Components Inc. CLS-RR11A12252B | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Blue, LED | 20 A | Panel Mount, Snap-In | Concave (Standard V) - Illuminated | Black | On-Off | 28.7 mm | 11.6 mm | 12 V | ||
Lumex Opto/Components Inc. CLS-RR11A12252Y | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | LED, Yellow | 20 A | Panel Mount, Snap-In | Concave (Standard V) - Illuminated | Black | On-Off | 28.7 mm | 11.6 mm | 12 V | ||
Lumex Opto/Components Inc. CLS-RR11A12252R | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | LED, Red | 20 A | Panel Mount, Snap-In | Concave (Standard V) - Illuminated | Black | On-Off | 28.7 mm | 11.6 mm | 12 V | ||
Lumex Opto/Components Inc. CLS-RR11A120250Y | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | LED, Yellow | 16 A | Panel Mount, Snap-In | 125 V | Concave (Curved) - Illuminated | Black | On-Off | 27.8 mm | 13.8 mm | ||
Lumex Opto/Components Inc. CLS-RR11A125500B | Quick Connect - 0.187" (4.7mm) | No Marking | SPST | Blue, LED | 10 A | Panel Mount, Snap-In | 125 V | Concave (Curved) - Illuminated | Black | On-Off | ||||
Lumex Opto/Components Inc. CLS-RR11A12252G | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Green, LED | 20 A | Panel Mount, Snap-In | Concave (Standard V) - Illuminated | Black | On-Off | 28.7 mm | 11.6 mm | 12 V | ||
Lumex Opto/Components Inc. CLS-RR11A12250G | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Green, LED | 25 A | Panel Mount, Threaded Body with Nut | Concave (Curved) - Illuminated | Black | On-Off | 12 V | 12 mm | |||
Lumex Opto/Components Inc. CLS-RR11A12251R | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | LED, Red | 25 A | Panel Mount, Snap-In | Concave (Curved) - Illuminated | Black | On-Off | 28.7 mm | 11.6 mm | 12 V | ||
Lumex Opto/Components Inc. CLS-RR11A120250B | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Blue, LED | 16 A | Panel Mount, Snap-In | 125 V | Concave (Curved) - Illuminated | Black | On-Off | 27.8 mm | 13.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLS-RR11 Series
Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
