664-015-664-055

Active

EDAC Inc.

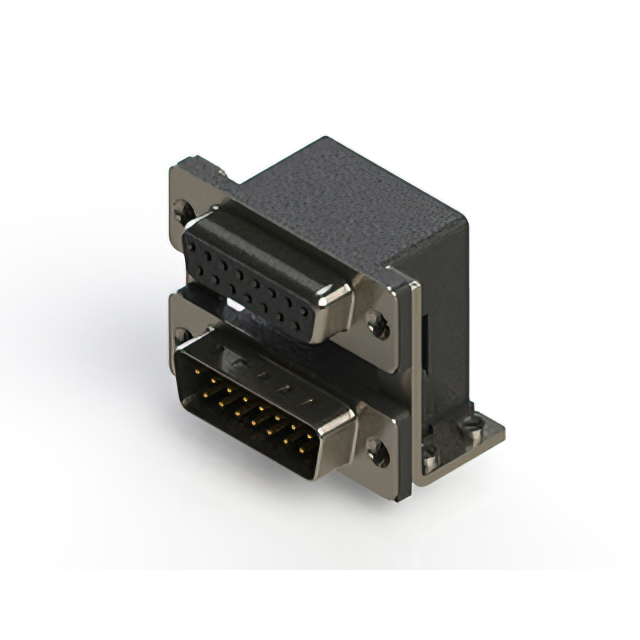

664 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

664-015-664-055

Active

EDAC Inc.

664 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	664-015-664-055

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins, Receptacle, Female Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder

664-015 Series

...

Part	Color	Backset Spacing	Backset Spacing	Shell Material, Finish	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Flange Feature	Current Rating (Amps)	Termination	Contact Material	Dielectric Material	Number of Positions	Features	Mounting Type	Connector Style	Contact Finish	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 664-015-364-032	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (4-40)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Board Lock Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	15 µin	0.38 µm
EDAC Inc. 664-015-264-039	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Female Screwlock (4-40) Mating Side	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Board Lock Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2			Flash
EDAC Inc. 664-015-364-054	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (Unthreaded)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	15 µin	0.38 µm
EDAC Inc. 664-015-664-009	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Female Screwlock (4-40) Mating Side	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Grounding Indents Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	30 Áin	0.76 Ám
EDAC Inc. 664-015-364-004	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (Unthreaded)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Grounding Indents Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	15 µin	0.38 µm
EDAC Inc. 664-015-664-033	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Female Screwlock (4-40) Mating Side	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Board Lock Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	30 Áin	0.76 Ám
EDAC Inc. 664-015-664-055	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (4-40)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	30 Áin	0.76 Ám
EDAC Inc. 664-015-664-035	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (4-40)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Board Lock Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	30 Áin	0.76 Ám
EDAC Inc. 664-015-364-03A	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (M3)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Board Lock Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2	15 µin	0.38 µm
EDAC Inc. 664-015-264-008	Black	8.08 mm	0.318 "	Nickel Plated Steel	UL94 V-0	2	2	85 °C	-55 °C	Signal	Housing/Shell (4-40)	3 A	Solder	Brass Phosphor Bronze	Polyester Thermoplastic	15	Grounding Indents Shielded	Through Hole Right Angle	D-Sub - Stacked	Gold	Plug Male Pins Receptacle Female Socket	2			Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.39

Description

General part information

664-015 Series

15, 15 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
