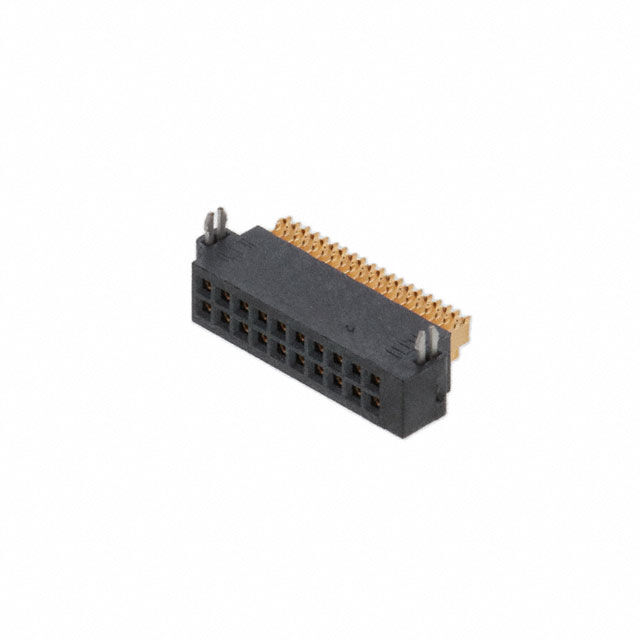

Specification	SFMH-110-02-L-D-LC-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 µin
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Lock
Insulation Color	Black
Insulation Height	0.135 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Style	Board
Termination	Solder

SFMH-110 Series

Headers & Wire Housings .050" Tiger Eye High-Reliability Socket Strip, Horizontal Mount

Part	Number of Positions	Insulation Height	Row Spacing - Mating	Current Rating (Per Contact)	Style	Termination	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Contact Finish - Mating	Material Flammability Rating	Number of Rows	Insulation Color	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Fastening Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Contact Material	Insulation Material	Features
Samtec Inc. SFMH-125-02-F-D	50	0.135 in	0.05 in	2.6 A	Board	Solder	3 µin	Right Angle Surface Mount	Receptacle	Gold	UL94 V-0	2	Black	Female Socket	125 °C	-55 °C	0.05 in	All	Gold	Push-Pull	Square	Flash	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. SFMH-125-02-S-D-LC	50	0.135 in	0.05 in	2.6 A	Board	Solder	30 µin	Right Angle Surface Mount	Receptacle	Gold	UL94 V-0	2	Black	Female Socket	125 °C	-55 °C	0.05 in	All	Tin	Push-Pull	Square			Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Lock
Samtec Inc. SFMH-125-02-L-D	50	0.135 in	0.05 in	2.6 A	Board	Solder	10 µin	Right Angle Surface Mount	Receptacle	Gold	UL94 V-0	2	Black	Female Socket	125 °C	-55 °C	0.05 in	All	Gold	Push-Pull	Square	Flash	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. SFMH-125-02-L-D-LC-TR	50	0.135 in	0.05 in	2.6 A	Board	Solder	10 µin	Right Angle Surface Mount	Receptacle	Gold	UL94 V-0	2	Black	Female Socket	125 °C	-55 °C	0.05 in	All	Gold	Push-Pull	Square	Flash	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Lock
