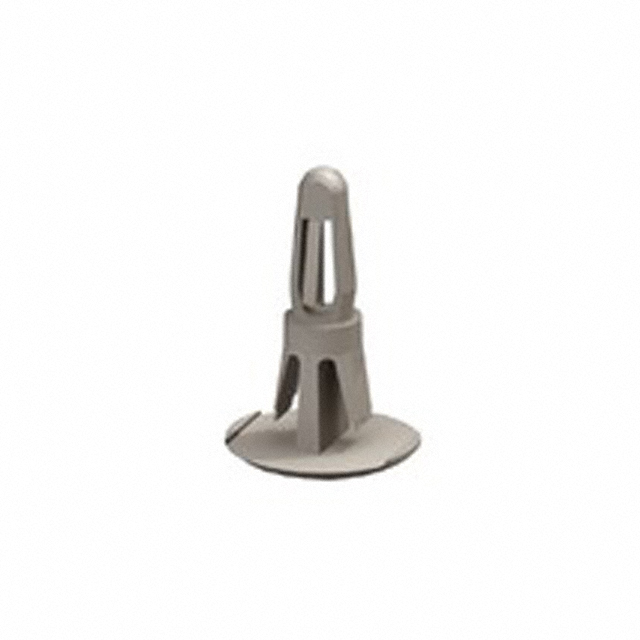

Specification	9064

Between Board Height	0.625 in
Features	Releasable, Reverse Mounting
Holding Type	Snap Lock
Length - Overall	1.157 in
Material	Nylon
Mounting Hole Diameter	0.213 in
Mounting Panel Thickness	0.062 in
Mounting Type	Snap Lock
Support Hole Diameter	0.156 in
Support Hole Diameter (Alternate)	5/32"
Support Panel Thickness	0.062 in
Support Panel Thickness (Fraction)	1/16"
