TM171EP27R
ActiveSCHNEIDER ELECTRIC
MODICON M171 PERFORMANCE EXPANSI
TM171EP27R
ActiveSCHNEIDER ELECTRIC
MODICON M171 PERFORMANCE EXPANSI
Description
General part information

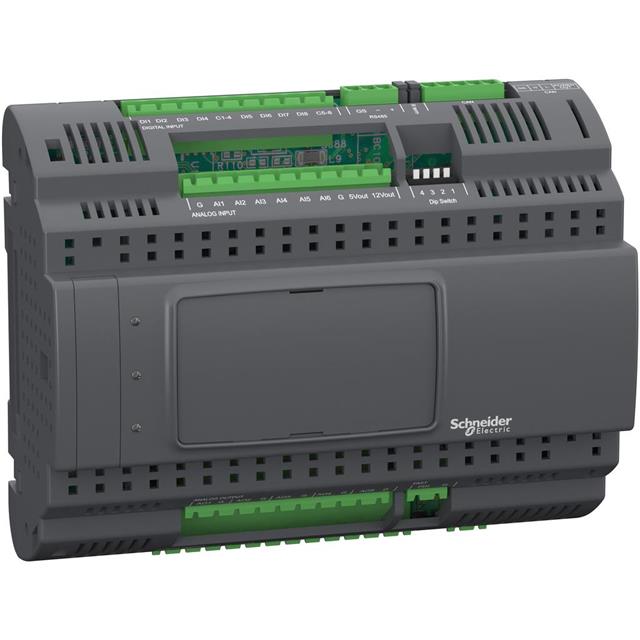

TM171EP27R
Input, Output (I/O) Module DIN Rail 24VAC/DC
Technical Specifications
Parameters and characteristics for this part
| Specification | TM171EP27R |
|---|---|
| Analog Outputs | 5 |
| Approval Agency | cURus, CE, CSA, EAC |
| For Use With/Related Products | Modicon M171, Modicon M172 Series |
| Ingress Protection | IP20 |
| Input Types | Analog, Digital |
| Mounting Type | DIN Rail |
| Number of Analog Inputs | 6 |
| Number of Digital Inputs | 8 |
| Number of Inputs | 14 |
| Number of Outputs | 13 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay, Analog |
| Relay Outputs | 8 |
| Termination Style | Screw Terminal |
| Type | Output (I/O) Module, Input |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
| Weight | 0.42 lb |
