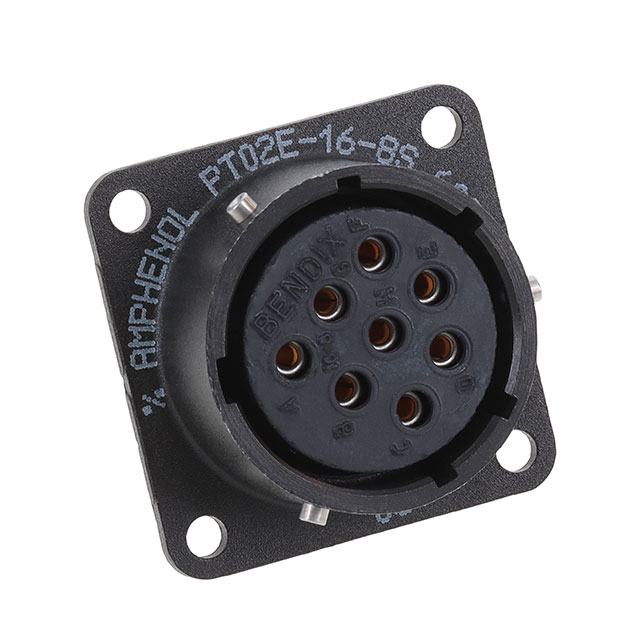

Specification	PT02E16-8S-025

Applications	Industrial, Instrumentation, Military, Mass Transit, Aerospace
Backshell Material	Aluminum
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Black Zinc Cobalt
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Black Zinc Cobalt
Shell Material	Aluminum
Shell Size - Insert Length	16 mm
Shell Size - Insert Width	8 mm
Shielding	Unshielded
Termination	Solder Cup

PT02E Series

Part	Contact Finish - Mating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Connector Type	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Fastening Type	Color	Shielding	Ingress Protection	Shell Material	Primary Material	Mounting Type	Mounting Feature	Shell Finish	Termination	Qualification	Applications	Backshell Material, Plating	Contact Material	Insert Material	Backshell Material	Plating	Shell Size - Insert Length	Shell Size - Insert Width
Amphenol Aerospace Operations PT02E-18-32S	Gold	32	18	Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	32	Bayonet Lock	Olive Drab	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene
Amphenol Aerospace Operations PT02E12-8S-025	Gold			Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	8	Bayonet Lock	Black	Unshielded	Environment Resistant	Aluminum	Metal	Panel Mount	Flange	Black Zinc Cobalt	Solder Cup	MIL-DTL-26482 Series I	Aerospace Communication Systems Industrial Instrumentation Mass Transit		Copper Alloy	Neoprene	Aluminum	Black Zinc Cobalt	12 mm	8 mm
Amphenol Aerospace Operations PT02E-14-5P	Gold			Male Pins Receptacle	N (Normal)	125 °C	-55 °C	5	Bayonet Lock	Olive Drab	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene			14 mm	5 mm
Amphenol Aerospace Operations PT02E12-3P(025)	Gold			Male Pins Receptacle	N (Normal)	125 °C	-55 °C	3	Bayonet Lock	Black	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Black Zinc Cobalt	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military		Copper Alloy	Neoprene	Aluminum	Black Zinc Cobalt	12 mm	3 mm
Amphenol Aerospace Operations PT02E24-61PW	Gold	61	24	Male Pins Receptacle	W	125 °C	-55 °C	61	Bayonet Lock	Olive Drab	Unshielded	Environment Resistant	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene
Amphenol Aerospace Operations PT02E-8-2P	Gold			Male Pins Receptacle	N (Normal)	125 °C	-55 °C	2	Bayonet Lock	Olive Drab	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene			8 mm	2 mm
Amphenol Aerospace Operations PT02E-12-10P(025)	Gold			Male Pins Receptacle	N (Normal)	125 °C	-55 °C	10	Bayonet Lock	Black	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Black Zinc Cobalt	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military		Copper Alloy	Neoprene	Aluminum	Black Zinc Cobalt	12 mm	10 mm
Amphenol Aerospace Operations PT02E-14-19S	Gold	19	14 S	Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	19	Bayonet Lock	Olive Drab	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene
Amphenol Aerospace Operations PT02E-16-23P	Gold	23	16 S	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	23	Bayonet Lock	Olive Drab	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene
Amphenol Aerospace Operations PT02E-20-16S	Gold			Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	16	Bayonet Lock	Olive Drab	Unshielded	Environment Sealed	Aluminum	Metal	Panel Mount	Flange	Cadmium Olive Drab Chromate	Solder Cup	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Copper Alloy	Neoprene			20 mm	16 mm
