PT06SE-12-10PW
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB PLUG
PT06SE-12-10PW
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB PLUG
Description
General part information
PT06SE-12-10PW

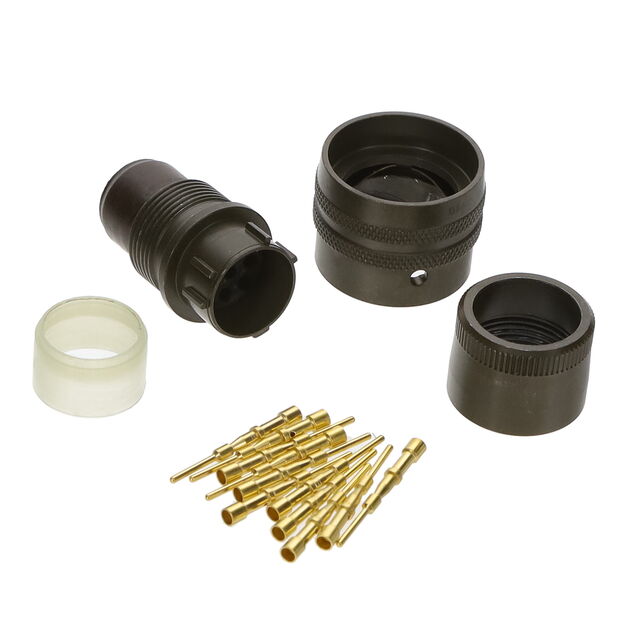

10 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | PT06SE-12-10PW |
|---|---|
| Applications | Industrial, Instrumentation, Military, Mass Transit, Aerospace |
| Backshell Material | Aluminum |
| Color | Olive Drab |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | W |
| Plating | Olive Drab Chromate over Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate, Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 10 mm |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
