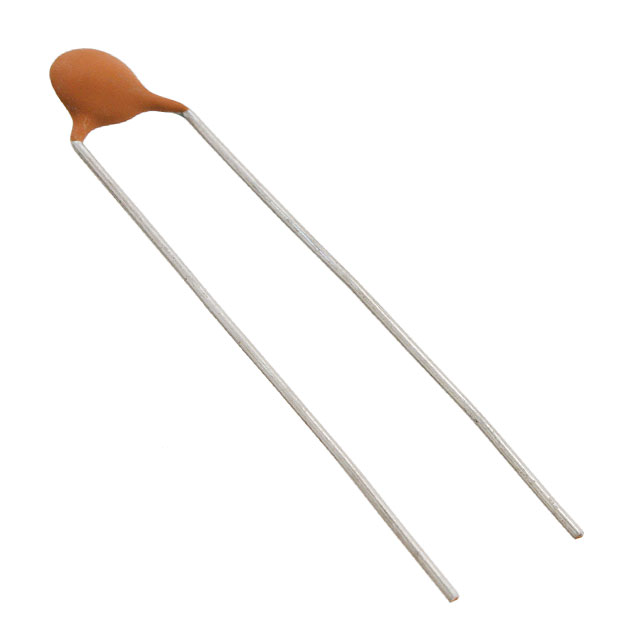

D222M20Z5UH63L2R
ActiveVishay Dale
CAP CER 2200PF 100V Z5U RADIAL
D222M20Z5UH63L2R
ActiveVishay Dale
CAP CER 2200PF 100V Z5U RADIAL
Description
General part information
D222M20Z5UH63L2R
2200 pF ±20% 100V Ceramic Capacitor Z5U Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | D222M20Z5UH63L2R |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 pF |
| Lead Spacing | 0.098 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.197 in |
| Temperature Coefficient | Z5U |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
