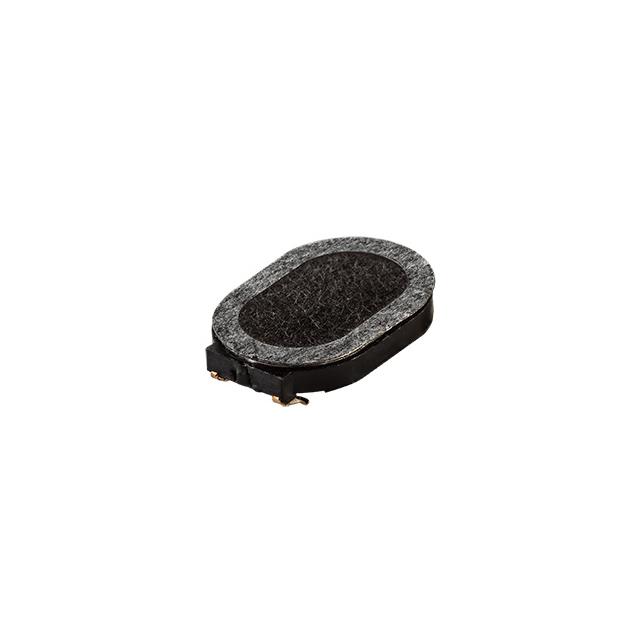

CMS-2341-06S-TR
ActiveSame Sky (Formerly CUI Devices)
SPEAKER, 23 X 4.1MM DEEP, PEI, N
CMS-2341-06S-TR
ActiveSame Sky (Formerly CUI Devices)
SPEAKER, 23 X 4.1MM DEEP, PEI, N
Description
General part information
CMS-2341-06S-TR
50 Ohms General Purpose Speaker 600 mW 425 Hz ~ 10 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-2341-06S-TR |
|---|---|
| Distortion Rating (Max) | 5 % |
| Distortion Rating Power | 100 mW |
| Efficiency - dBA | 88 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 100 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 425 Hz |
| Height - Seated (Max) | 0.161 in |
| Impedance | 50 Ohm |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 600 mW |
| Shape | Round |
| Size / Dimension Diameter | 0.906 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
