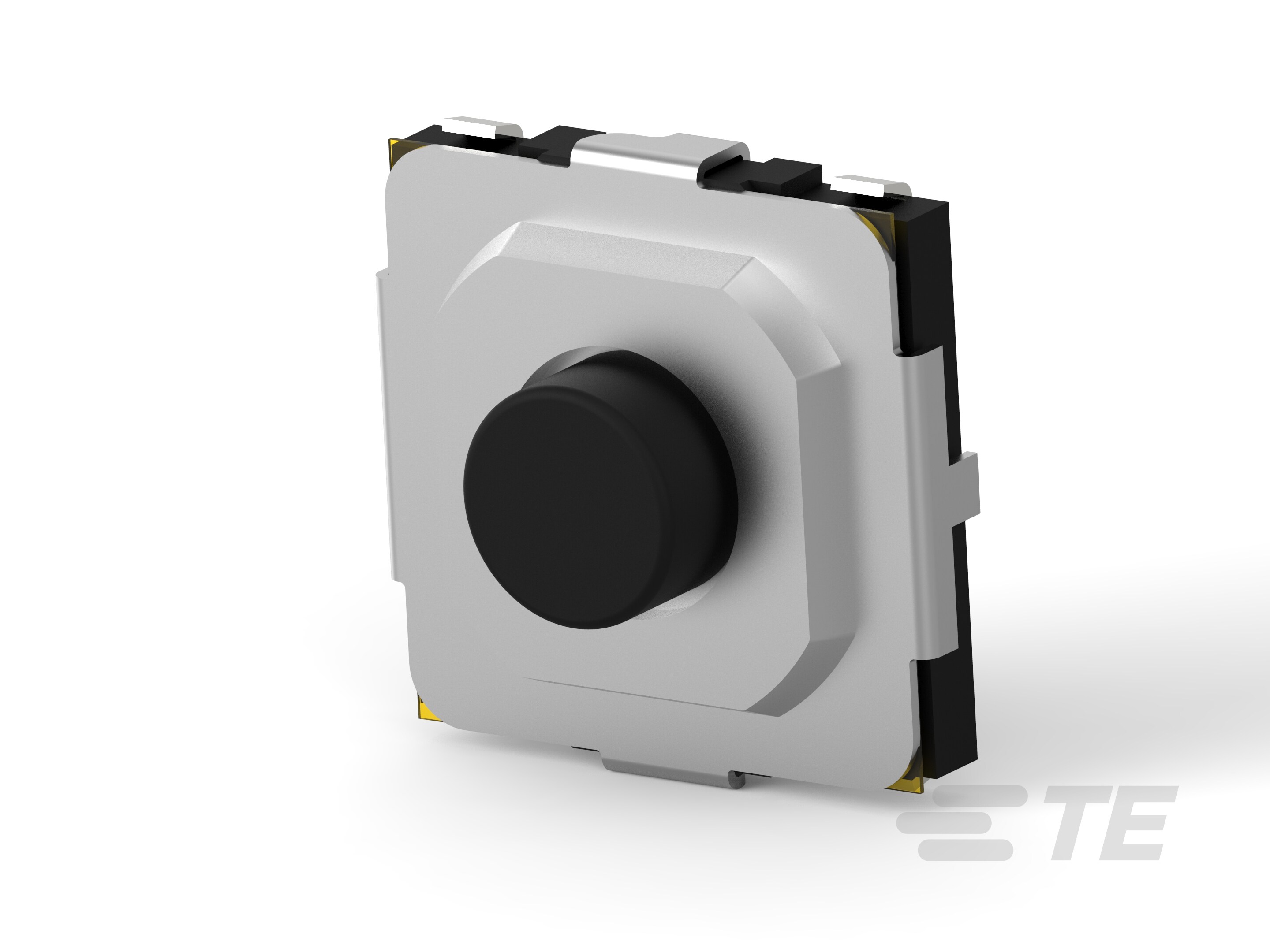

Specification	MSLPT5252CL3BTR

Actuator Height off PCB (Vertical)	2 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	160 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Outline Length	5.2 mm
Outline Width	5.2 mm
Switch Function	Off-Mom
Termination Style	J Lead
